Welcome to Mazdaspeed ForumsMazda Forums / MazdaSpeed Forums - Mazdaspeed Forum with High Performance Discussions, Car Gallery, Mods Information, Street Racing Stats,Street Racing Videos & more. The Archived MazdaspeedForums! Mazdaspeed Mazda MSF MazdaSpeedForums.org. You are currently viewing our boards in read mode only. We are here to preserve the data and info that is useful to Mazda gear heads. If you'd like to donate to keep this info alive, your donation will go to hosting, SSL, and domain fees. | |
Search Forum |
| LinkBack | Thread Tools | Search this Thread | Display Modes |
|
05-25-2014, 03:21 AM | #1 |
Join Date: Jul 2013 Location: Spokane, WA
Posts: 333
(View Stats)
iTrader: (1)
Rep Power: 0 Thanks: 94
Thanked 61 Times in 42 Posts
Groans: 0
Groaned at 7 Times in 5 Posts
(Thread Starter) | Not Ranked : 0 score Footwell Lights I have been searching for a while. I didnt find anything on How to's for the CX-7. What I want to do is when the doors open I want some leds to turn on in the foot-wells and turn off when the doors are closed. I removed the front map/dome lights. I have three wires. I checked for power and ground. First wire is a ground the second wire is 12 volts ( door closed or doors open) Third wire is weird, when the doors are open I dont have voltage. when I close the doors I get 5 volts. Is the other Mazdaspeeds 3's or 6's like this? Once I find how to. I will make a how to for the CX7 |
05-25-2014, 06:31 AM | #2 |
Join Date: Feb 2014 Location: Delran, NJ
Posts: 448
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 364
Thanked 217 Times in 129 Posts
Groans: 2
Groaned at 0 Times in 0 Posts
| Not Ranked : 0 score Footwell Lights The idea is simple, and should be possible if you just tap into the wires for the dome light. (At least on a MS3 the dome light comes on when you unlock the car/open door/close door [with fade or until locked]) You want something like this? Tappappallday
__________________ NJ NATOR Last edited by Drive By Fire; 05-25-2014 at 06:32 AM. Reason: spelling |
05-25-2014, 04:29 PM | #3 |
Join Date: Jul 2013 Location: Spokane, WA
Posts: 333
(View Stats)
iTrader: (1)
Rep Power: 0 Thanks: 94
Thanked 61 Times in 42 Posts
Groans: 0
Groaned at 7 Times in 5 Posts
(Thread Starter) | Not Ranked : 0 score I want something like that. But white leds. im going back out there to play. |
05-25-2014, 06:50 PM | #4 |
Join Date: Jul 2013 Location: Spokane, WA
Posts: 333
(View Stats)
iTrader: (1)
Rep Power: 0 Thanks: 94
Thanked 61 Times in 42 Posts
Groans: 0
Groaned at 7 Times in 5 Posts
(Thread Starter) | Not Ranked : 0 score well after putting my kido down for a nap. I got to playing around with the wiring. Found out how tie in to the factory wiring. I will post pictures tonight or tomorrow on how I did it. |
05-27-2014, 07:30 AM | #5 |
Join Date: Jul 2013 Location: Spokane, WA
Posts: 333
(View Stats)
iTrader: (1)
Rep Power: 0 Thanks: 94
Thanked 61 Times in 42 Posts
Groans: 0
Groaned at 7 Times in 5 Posts
(Thread Starter) | Not Ranked : 0 score uploadfromtaptalk1401197364624.jpg Front lights are done. Sent from my SAMSUNG-SGH-I337 using tapatalkreplace
__________________ 2007 Mazda CX-7: Custom FMIC, Forge V1 BPV, Grimmspeed 3 port EBC, BNR S3 turbo, 3 inch Catless DP, Muffler Delete, JBR 3.5 intake, Autotech HPFP Internals, JBR OCC, Vogland Springs. Stereo: Two Memphis 10" Subs, 2 Memphis 1.500 Amps. Memphis 4.50 Amp, Image Dynamics Components and Coaxials. |
05-27-2014, 07:31 AM | #6 |
Join Date: Feb 2014 Location: Delran, NJ
Posts: 448
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 364
Thanked 217 Times in 129 Posts
Groans: 2
Groaned at 0 Times in 0 Posts
| Not Ranked : 0 score Looks good! Sent from my iPad using tapatalkreplace
__________________ NJ NATOR |
05-27-2014, 07:34 AM | #7 |
Join Date: Jul 2013 Location: Spokane, WA
Posts: 333
(View Stats)
iTrader: (1)
Rep Power: 0 Thanks: 94
Thanked 61 Times in 42 Posts
Groans: 0
Groaned at 7 Times in 5 Posts
(Thread Starter) | Not Ranked : 0 score The driver side didn't have a place to mount the. Glad I had some left over 1/4 inch mdf. Sent from my SAMSUNG-SGH-I337 using tapatalkreplace
__________________ 2007 Mazda CX-7: Custom FMIC, Forge V1 BPV, Grimmspeed 3 port EBC, BNR S3 turbo, 3 inch Catless DP, Muffler Delete, JBR 3.5 intake, Autotech HPFP Internals, JBR OCC, Vogland Springs. Stereo: Two Memphis 10" Subs, 2 Memphis 1.500 Amps. Memphis 4.50 Amp, Image Dynamics Components and Coaxials. |
05-28-2014, 08:55 AM | #8 |
Join Date: Aug 2012 Location: raleigh,nc
Posts: 263
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 17
Thanked 140 Times in 67 Posts
Groans: 0
Groaned at 0 Times in 0 Posts
| Not Ranked : 0 score I think I wired mine into the fuse box under the glove box. Our cars share a common ground instead of positive. It's kinda weird I'll take it out and get some pics after work unless you already figured it out. |
05-28-2014, 03:45 PM | #9 |
Join Date: Aug 2012 Location: raleigh,nc
Posts: 263
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 17
Thanked 140 Times in 67 Posts
Groans: 0
Groaned at 0 Times in 0 Posts

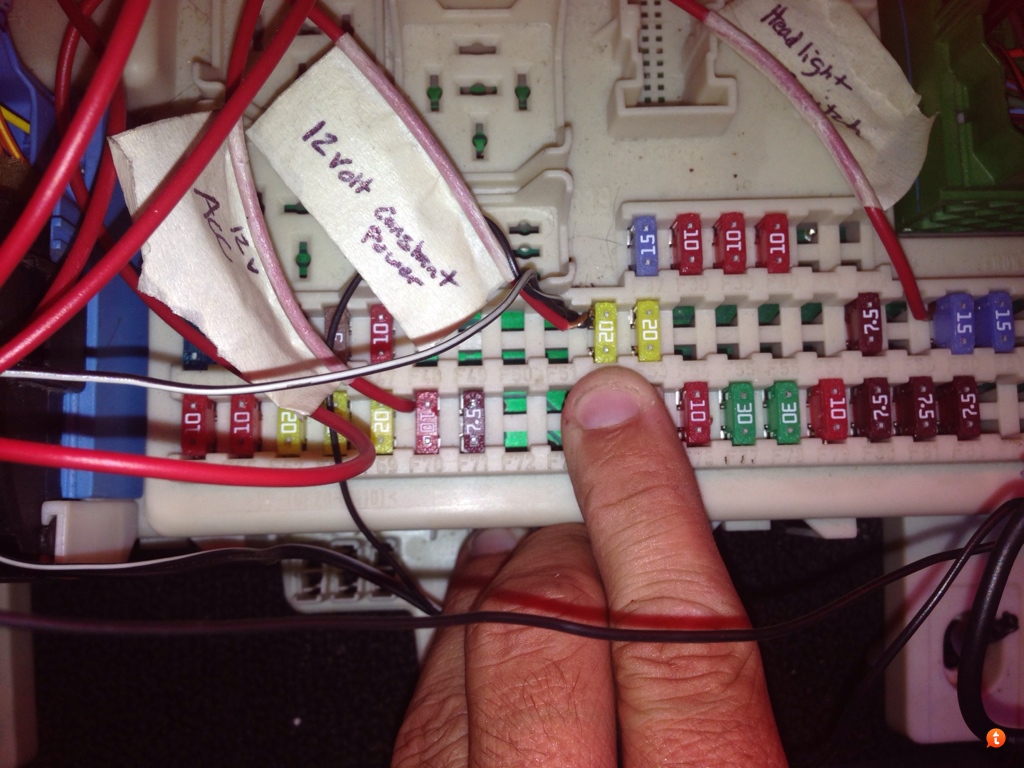

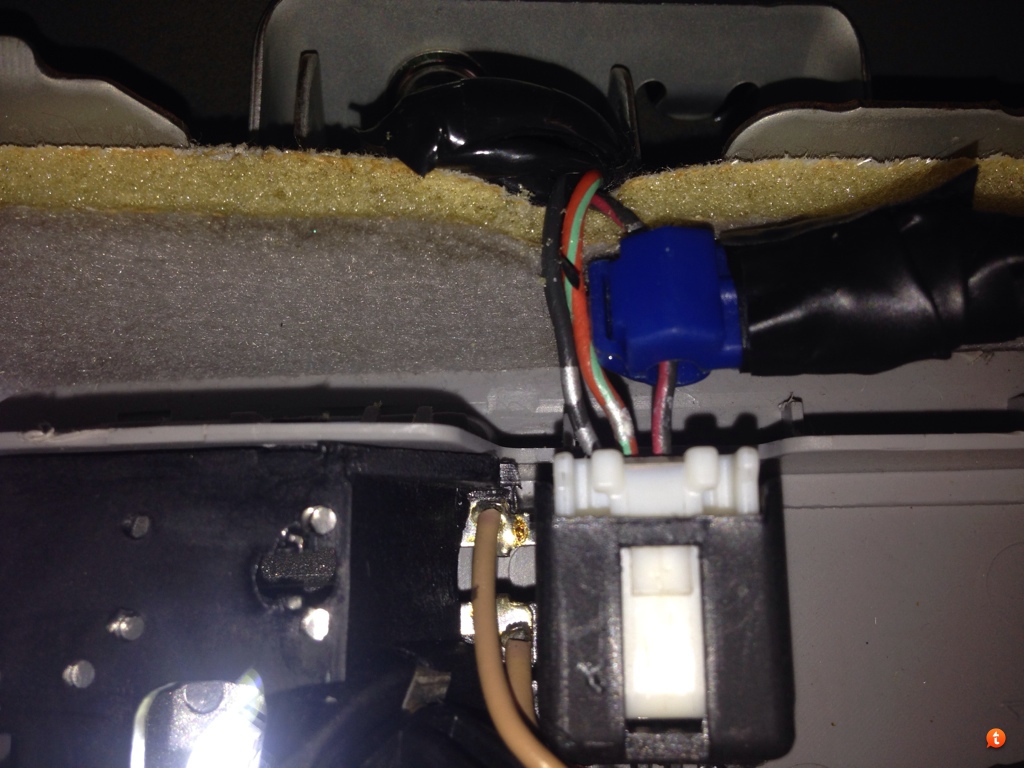

| Not Ranked : 0 score Ok guys I connected my ground wires from both led strips to one wire and ran it to the dome navigation lamp above the mirror and spliced into the black and red wire. I connected both positive wires together and ran one to one side of the sunroof fuse under the glove box that has constant 12v power. Hope this helps anyone trying to install leds to operate with the doors. Here is a pic of the dome lamp and where I spliced into it. And here is the pic where I connected the positive for constant power |
05-28-2014, 05:21 PM | #10 |
Join Date: Feb 2014 Location: Delran, NJ
Posts: 448
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 364
Thanked 217 Times in 129 Posts
Groans: 2
Groaned at 0 Times in 0 Posts
| Not Ranked : 0 score In need of some add-a-fuse! Sent from my iPad using Tapappallday
__________________ NJ NATOR |
05-28-2014, 08:39 PM | #11 |
Join Date: Aug 2012 Location: raleigh,nc
Posts: 263
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 17
Thanked 140 Times in 67 Posts
Groans: 0
Groaned at 0 Times in 0 Posts
| Not Ranked : 0 score Yeah was gonna do that. Lol but it seems to be working fine for the past 50,000 miles |
05-29-2014, 05:15 AM | #12 |
Join Date: Feb 2014 Location: Delran, NJ
Posts: 448
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 364
Thanked 217 Times in 129 Posts
Groans: 2
Groaned at 0 Times in 0 Posts
| Not Ranked : 0 score I hear you, but piece of mind. Not judging you. Lol. Sent from my iPad using Tapappallday
__________________ NJ NATOR |
05-30-2014, 03:00 PM | #13 |
Join Date: Aug 2012 Location: raleigh,nc
Posts: 263
(View Stats)
iTrader: (0)
Rep Power: 0 Thanks: 17
Thanked 140 Times in 67 Posts
Groans: 0
Groaned at 0 Times in 0 Posts
| Not Ranked : 0 score Yeah I thought the same thing when I opened it back up to take pics prob going to grab some while I'm at the parts store |
Currently Active Users Viewing This Thread: 1 (0 members and 1 guests) | |
| |
Similar Threads | ||||
Thread | Thread Starter | Forum | Replies | Last Post |
led interior lights and license plate lights | cocoleveo7686 | MazdaSpeed 3/6 - Appearance | 1 | 11-25-2013 01:25 PM |
Footwell LED wiring on 2010 MS3 | steven64o | 2010 MS3 - How-To's | 4 | 07-24-2013 11:41 PM |
rattling coming from footwell area. | edspeed3 | 2010 MS3 - Troubleshoot/Diagnostics | 1 | 06-21-2010 11:08 AM |
HIDs, Reverse lights, Liscence Plate lights | Franconemo | Exterior | 31 | 06-12-2010 03:25 AM |
Coolant leaking under passenger footwell | ericm979 | MazdaSpeed 3/6 - Troubleshoot/Diagnostics | 15 | 05-18-2010 01:15 PM |
