Default help....melted cable off of battery

wife's DD

so i have the trackmasters ecu relocation kit, have had it on there for prob yr.

Mazdaspeed 3 07'-13' ECU Relocation Bracket - Trackmasters

well today she smelt something burning from the drivers side engine comparment.

she pulled and didn't see anything, but drove home w/ no A/C in 100+ deg.

well the "patch" cord that TM suppplies to lengthen this cable has melted down.



what does it go to?
__________________
ΜΟΛΩΝ ΛΑΒΕ
2014 Honda Grom 125cc's of FURY! now more furious w/ 181cc's
2015 F150 Platinum

2012 MS3 Liquid Silver
Autotech HPFP
Cobb AP & CBE
Corksport FTB
Enkei Raijin 18x8 et45
JBR 3.0WP, RSB, RMM & SSP II
Stratified Tune
TrackMasters hood prop and ecu reloc.
TurboSmart BOV
RACER_X is offline   Reply With Quote
 Old 07-27-2015, 06:04 PM   #2

RACER_X's Avatar

Join Date: Dec 2012
Location: Richmond, TX
Posts: 266   (View Stats)
iTrader: (1)
Rep Power: 0
RACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the world
Thanks: 5
Thanked 125 Times in 68 Posts
Groans: 0
Groaned at 31 Times in 14 Posts
(Thread Starter)
Not Ranked  0 score
Default

__________________
ΜΟΛΩΝ ΛΑΒΕ
2014 Honda Grom 125cc's of FURY! now more furious w/ 181cc's
2015 F150 Platinum

2012 MS3 Liquid Silver
Autotech HPFP
Cobb AP & CBE
Corksport FTB
Enkei Raijin 18x8 et45
JBR 3.0WP, RSB, RMM & SSP II
Stratified Tune
TrackMasters hood prop and ecu reloc.
TurboSmart BOV
RACER_X is offline   Reply With Quote
 Old 07-27-2015, 06:22 PM   #3

Orangatang's Avatar

Join Date: Oct 2013
Location: Sebastopol, Ca
Posts: 466   (View Stats)
iTrader: (0)
Rep Power: 0
Orangatang is the leader of the worldOrangatang is the leader of the worldOrangatang is the leader of the worldOrangatang is the leader of the worldOrangatang is the leader of the worldOrangatang is the leader of the worldOrangatang is the leader of the worldOrangatang is the leader of the worldOrangatang is the leader of the worldOrangatang is the leader of the worldOrangatang is the leader of the world
Thanks: 5
Thanked 187 Times in 119 Posts
Groans: 0
Groaned at 3 Times in 3 Posts
Not Ranked  0 score
Default

Looks like a bad install to me. what was electrical taped and why. It's a cable for a fuse holder or what ever it says in the install instructions.
Looks like at some point to many amps, resistance or something cooked the casing.
__________________
Corksport stage 2 sri/tip, Autotech Internals, RSB,
CBE, Forge bpv, Koni FSD, Mazda Sport Springs,
ITV22, JBR PMM, JBR TMM, JBR RMM, Damond SSP
JBR SSB, CX piping with TR6, DM OCC

Dizzy Tuned

" I just don't need a stage 6, 16 puck, teflon diamond plated clutch that can snap a femur downshifting." -Raider
Orangatang is offline   Reply With Quote
 Old 07-27-2015, 07:10 PM   #4

WAMBUSHHHH!'s Avatar

Join Date: May 2013
Location: Bryn Mawr, PA
Posts: 1,599   (View Stats)
iTrader: (1)
Rep Power: 0
WAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the world
Thanks: 1,449
Thanked 1,336 Times in 715 Posts
Groans: 9
Groaned at 3 Times in 3 Posts
Not Ranked  0 score
Default

Based on my experience with the extension piece (looks similar to what happened to mine), the nut and bolt that secures the extension most likely came a little lose, arced and caught fire. Fortunately for me I caught it in time so it only burned the extension and I was able to remove the relocation and just got back to stock set-up. Not sure if you can do the same.

However, not sure if you saw this thread or not but see post 39 in the thread linked.
Click here and go to post 39
__________________
2013 LSM Mazdaspeed3 - stocked out and traded 6/5/2017
2017 LGM Golf R - South Bend stage 3 daily clutch / IE intake / Wagner IC / AWE downpipe / Indvidia catback / EQT Tuned

2004 Yamaha R6 - Micron Ricer Pipe / PC
2005 Honda CBR 600 F4i - R.I.P. 10/29/13
WAMBUSHHHH! is offline   Reply With Quote
 Old 07-27-2015, 07:42 PM   #5

Addikted To Boost's Avatar

Join Date: Sep 2008
Location: Lynchburg, VA
Posts: 1,837   (View Stats)
iTrader: (17)
Rep Power: 0
Addikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the world
Thanks: 1,559
Thanked 1,498 Times in 432 Posts
Groans: 157
Groaned at 29 Times in 16 Posts
Not Ranked  0 score
Default

Hmm, this is interesting to see. A few weeks back, shortly after we installed the trackmasters bracket on my brothers speed 3, he was driving home when his car started bucking really bad out of the blue. He noticed his battery voltage had was dropping quickly and the car drove terrible. After doing some snooping, we discovered that the trackmasters fuse holder had literally melted through and was shorting to ground on the frame, which in turn fried the alternator. I helped him with the install, I am a certified electronics installer and I have been doing electrical installs for over a decade, so I dont think it was installer error. Ive installed a lot of aftermarket stereo systems, and the wire that was sent seemed really cheap to me, it got so hot that it literally crumbled into pieces when I pulled it out of the car.

Anyhow, this seems to be a recurring theme with these kits... @Raider; have you seen anything else like this pop up?







__________________
09 MGM MS3

BNR S3 V2, Freek'd Corn Toon, Cobb AP V3, Cobb FMIC w/ JBR piping, JBR WP 3.5 silicone, Cobb EBCS, Turbo XS Catless DP and TP, CPE Nexus CBE, Autotechs, GFB Hybrid BPV, Damond Trilogy mounts (FTMFW), Bilstein B14 Coils, RX8 R3s

Addikted To Boost is offline   Reply With Quote
 Old 07-27-2015, 07:47 PM   #6
6 mods and some Kool-Aid

Raider's Avatar

Join Date: Mar 2008
Location: Jax, FL
Posts: 28,879   (View Stats)
iTrader: (12)
Rep Power: 28977
Raider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the world
Thanks: 20,271
Thanked 57,013 Times in 14,591 Posts
Groans: 856
Groaned at 183 Times in 156 Posts
Not Ranked  0 score
Default

I have! Post above you. They made a new kit. Call them.
Raider is offline   Reply With Quote
The Following 2 Users Say Thank You to Raider For This Useful Post:
Easter Bunny (07-28-2015), JgamB (07-28-2015)
 Old 07-27-2015, 07:49 PM   #7

Addikted To Boost's Avatar

Join Date: Sep 2008
Location: Lynchburg, VA
Posts: 1,837   (View Stats)
iTrader: (17)
Rep Power: 0
Addikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the world
Thanks: 1,559
Thanked 1,498 Times in 432 Posts
Groans: 157
Groaned at 29 Times in 16 Posts
Not Ranked  0 score
Default

well, I was reading through that before I posted. He got the new kit with the 4 gauge wire... it wasnt 8 gauge.
__________________
09 MGM MS3

BNR S3 V2, Freek'd Corn Toon, Cobb AP V3, Cobb FMIC w/ JBR piping, JBR WP 3.5 silicone, Cobb EBCS, Turbo XS Catless DP and TP, CPE Nexus CBE, Autotechs, GFB Hybrid BPV, Damond Trilogy mounts (FTMFW), Bilstein B14 Coils, RX8 R3s

Addikted To Boost is offline   Reply With Quote
 Old 07-27-2015, 07:53 PM   #8

brandon3212's Avatar

Join Date: Sep 2012
Location: London Ontario Canada
Posts: 425   (View Stats)
iTrader: (0)
Rep Power: 0
brandon3212 is the leader of the worldbrandon3212 is the leader of the worldbrandon3212 is the leader of the worldbrandon3212 is the leader of the worldbrandon3212 is the leader of the worldbrandon3212 is the leader of the worldbrandon3212 is the leader of the worldbrandon3212 is the leader of the worldbrandon3212 is the leader of the worldbrandon3212 is the leader of the worldbrandon3212 is the leader of the world
Thanks: 338
Thanked 476 Times in 189 Posts
Groans: 3
Groaned at 1 Time in 1 Post
Not Ranked  0 score
Default

This shit always makes me so paranoid

I need to start carrying some fire extinguishers in the car. If something was ever to catch fire, their would be no hope of saving the car. Especially with all the track days I do, stuff just gets so hot.
__________________
07 Speed 3

Handling: H&R Springs, Koni yellow shocks, JBR .250 Competition RSB, Whiteline poly control arm bushings, Custom 1/2" rod end RSB links, JBR 88D Trilogy, steel RMM bushings, Sparco Pro 2000 race seat (driver), Kirkey race seat (passenger), shift plate, 18X10.5 +15 RPF1, 275/35 18" Nitto NT01

Brakes: Wilwood 6 piston calipers, Cobalt Friction XR1 race pads

Power: Custom 3.5" intake, Synapse Diverter valve, dual 3" Hood Exit, BNR S3, Treadstone 3126 core, 3 port EBCS, 3" custom cold pipe, 2.5" custom underroute hot pipe, Aquamist HSF4
brandon3212 is offline   Reply With Quote
 Old 07-28-2015, 03:51 AM   #9

RACER_X's Avatar

Join Date: Dec 2012
Location: Richmond, TX
Posts: 266   (View Stats)
iTrader: (1)
Rep Power: 0
RACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the world
Thanks: 5
Thanked 125 Times in 68 Posts
Groans: 0
Groaned at 31 Times in 14 Posts
(Thread Starter)
Not Ranked  0 score
Default

thanks for the link @WAMBUSHHHH!

i called them yest. but they are out of the office this whole week

addikted, mine didn't come w/ a fuse, just a "patch" cord

i went to a car stereo store and they made me another piece

going w/ a bigger wire is not nec. the answer, i'd rather have this cord fail then the OE wiring.

but why is it happening is the bigger question.
__________________
ΜΟΛΩΝ ΛΑΒΕ
2014 Honda Grom 125cc's of FURY! now more furious w/ 181cc's
2015 F150 Platinum

2012 MS3 Liquid Silver
Autotech HPFP
Cobb AP & CBE
Corksport FTB
Enkei Raijin 18x8 et45
JBR 3.0WP, RSB, RMM & SSP II
Stratified Tune
TrackMasters hood prop and ecu reloc.
TurboSmart BOV

Last edited by RACER_X; 07-28-2015 at 06:54 AM.
RACER_X is offline   Reply With Quote
 Old 07-28-2015, 06:28 AM   #10

jthough1's Avatar

Join Date: Aug 2012
Location: Friendly and affordable Northern NJ
Posts: 70   (View Stats)
iTrader: (0)
Rep Power: 0
jthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to behold
Thanks: 19
Thanked 18 Times in 13 Posts
Groans: 3
Groaned at 0 Times in 0 Posts
Not Ranked  0 score
Default

Originally Posted by RACER_X View Post
wife's DD

so i have the trackmasters ecu relocation kit, have had it on there for prob yr.

Mazdaspeed 3 07'-13' ECU Relocation Bracket - Trackmasters

well today she smelt something burning from the drivers side engine comparment.

she pulled and didn't see anything, but drove home w/ no A/C in 100+ deg.

well the "patch" cord that TM suppplies to lengthen this cable has melted down.



what does it go to?
I dont know much about this kit but how is the "patch" cord connected to the existing wire?
__________________
06' MS6 White Pearl - Blown Motor - Rebuilding
jthough1 is offline   Reply With Quote
 Old 07-28-2015, 06:29 AM   #11

Addikted To Boost's Avatar

Join Date: Sep 2008
Location: Lynchburg, VA
Posts: 1,837   (View Stats)
iTrader: (17)
Rep Power: 0
Addikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the world
Thanks: 1,559
Thanked 1,498 Times in 432 Posts
Groans: 157
Groaned at 29 Times in 16 Posts
Not Ranked  0 score
Default

On the gen 1 kit they provide an aftermarket fuse holder like in my pictures above

Sent from my SM-G925V using tapatalkreplace
__________________
09 MGM MS3

BNR S3 V2, Freek'd Corn Toon, Cobb AP V3, Cobb FMIC w/ JBR piping, JBR WP 3.5 silicone, Cobb EBCS, Turbo XS Catless DP and TP, CPE Nexus CBE, Autotechs, GFB Hybrid BPV, Damond Trilogy mounts (FTMFW), Bilstein B14 Coils, RX8 R3s

Addikted To Boost is offline   Reply With Quote
 Old 07-28-2015, 06:34 AM   #12
6 mods and some Kool-Aid

Raider's Avatar

Join Date: Mar 2008
Location: Jax, FL
Posts: 28,879   (View Stats)
iTrader: (12)
Rep Power: 28977
Raider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the worldRaider is the leader of the world
Thanks: 20,271
Thanked 57,013 Times in 14,591 Posts
Groans: 856
Groaned at 183 Times in 156 Posts
Not Ranked  0 score
Default

@JgamB;, you know this product well. What are we seeing here? Is this the new one?
Raider is offline   Reply With Quote
The Following 2 Users Say Thank You to Raider For This Useful Post:
Easter Bunny (07-28-2015), JgamB (07-28-2015)
 Old 07-28-2015, 06:36 AM   #13

RACER_X's Avatar

Join Date: Dec 2012
Location: Richmond, TX
Posts: 266   (View Stats)
iTrader: (1)
Rep Power: 0
RACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the world
Thanks: 5
Thanked 125 Times in 68 Posts
Groans: 0
Groaned at 31 Times in 14 Posts
(Thread Starter)
Not Ranked  0 score
Default

Originally Posted by jthough1 View Post
I dont know much about this kit but how is the "patch" cord connected to the existing wire?
Originally Posted by Raider View Post
@JgamB;, you know this product well. What are we seeing here? Is this the new one?

on the new kits, they provide an in-line fuse and cord.

but I bought an early kit, and it basically only has a mechanical connection, basically a bolt and nut.

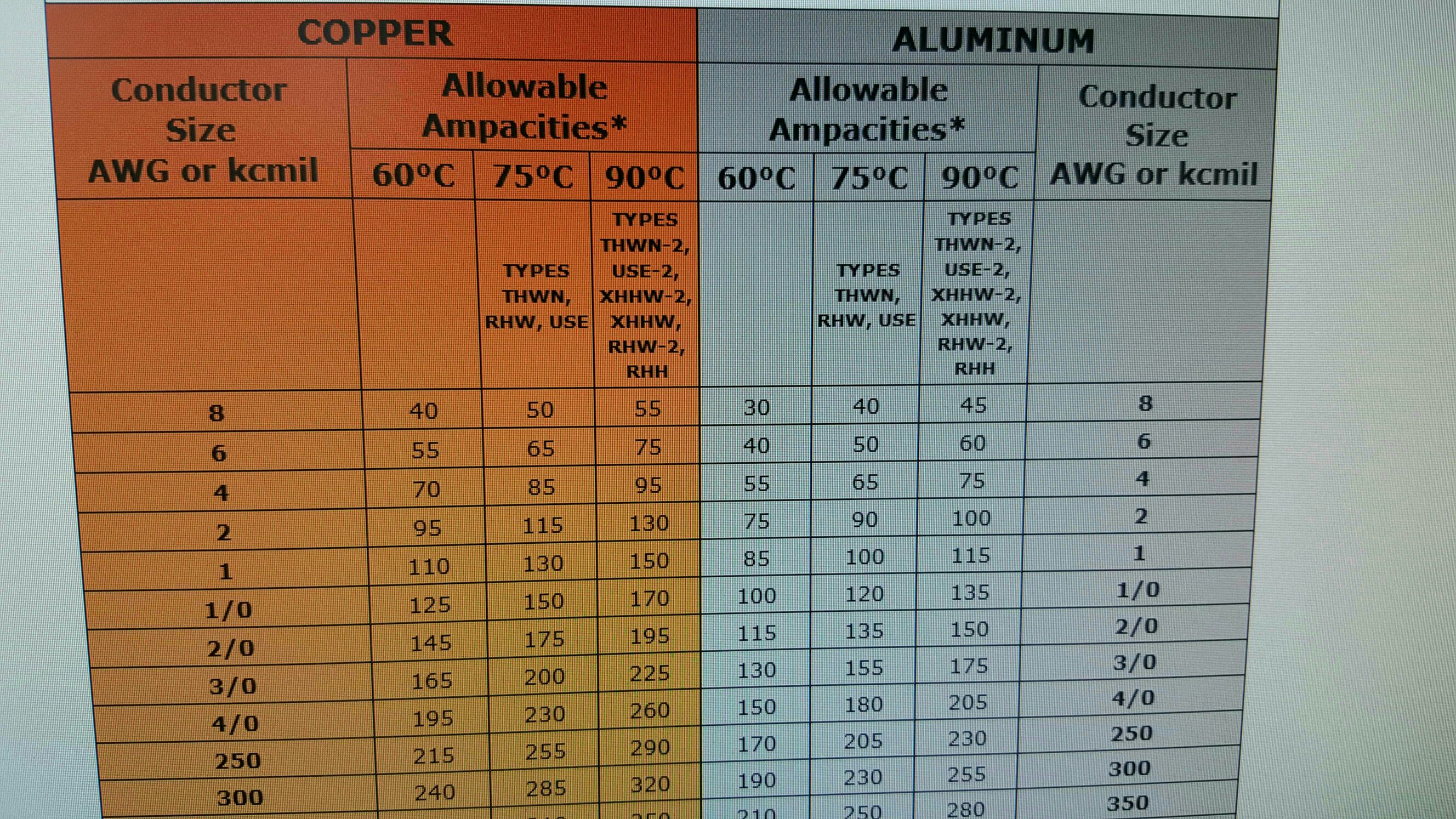

the thing is, OE wiring = 8 ga, trackmasters NOW = 4 ga, the OE wiring is more apt to burn up now , if the fuse is rated for the 4 gu. and that's bad, you'd rather have the fuse pop or the patch cord burn up vs the OE harness
__________________
ΜΟΛΩΝ ΛΑΒΕ
2014 Honda Grom 125cc's of FURY! now more furious w/ 181cc's
2015 F150 Platinum

2012 MS3 Liquid Silver
Autotech HPFP
Cobb AP & CBE
Corksport FTB
Enkei Raijin 18x8 et45
JBR 3.0WP, RSB, RMM & SSP II
Stratified Tune
TrackMasters hood prop and ecu reloc.
TurboSmart BOV
RACER_X is offline   Reply With Quote
 Old 07-28-2015, 06:41 AM   #14

Addikted To Boost's Avatar

Join Date: Sep 2008
Location: Lynchburg, VA
Posts: 1,837   (View Stats)
iTrader: (17)
Rep Power: 0
Addikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the world
Thanks: 1,559
Thanked 1,498 Times in 432 Posts
Groans: 157
Groaned at 29 Times in 16 Posts
Not Ranked  0 score
Default

it is a nice kit, I am looking to get one myself soon when I do a battery relocate. I would just like to figure out if it is causing these issues when you modify that connection with the patch wire.
__________________
09 MGM MS3

BNR S3 V2, Freek'd Corn Toon, Cobb AP V3, Cobb FMIC w/ JBR piping, JBR WP 3.5 silicone, Cobb EBCS, Turbo XS Catless DP and TP, CPE Nexus CBE, Autotechs, GFB Hybrid BPV, Damond Trilogy mounts (FTMFW), Bilstein B14 Coils, RX8 R3s

Addikted To Boost is offline   Reply With Quote
 Old 07-28-2015, 06:59 AM   #15

jthough1's Avatar

Join Date: Aug 2012
Location: Friendly and affordable Northern NJ
Posts: 70   (View Stats)
iTrader: (0)
Rep Power: 0
jthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to behold
Thanks: 19
Thanked 18 Times in 13 Posts
Groans: 3
Groaned at 0 Times in 0 Posts
Not Ranked  0 score
Default

Originally Posted by RACER_X View Post
on the new kits, they provide an in-line fuse and cord.

but I bought an early kit, and it basically only has a mechanical connection, basically a bolt and nut.

the thing is, OE wiring = 8 ga, trackmasters NOW = 4 ga, the OE wiring is more apt to burn up now , if the fuse is rated for the 4 gu. and that's bad, you'd rather have the fuse pop or the patch cord burn up vs the OE harness
Agreed on the gauge mismatch and fuse...that would unsettle me.

Is the patch cable copper or aluminum? And whats is the OE wiring?
__________________
06' MS6 White Pearl - Blown Motor - Rebuilding
jthough1 is offline   Reply With Quote
 Old 07-28-2015, 07:00 AM   #16

Addikted To Boost's Avatar

Join Date: Sep 2008
Location: Lynchburg, VA
Posts: 1,837   (View Stats)
iTrader: (17)
Rep Power: 0
Addikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the world
Thanks: 1,559
Thanked 1,498 Times in 432 Posts
Groans: 157
Groaned at 29 Times in 16 Posts
Not Ranked  0 score
Default

The patch cable is aluminum, oem is copper, based on some quick Google searches, I'm not sure that 4 gauge aluminum cable can support the current requirements of this application.

Sent from my SM-G925V using tapatalkreplace
__________________
09 MGM MS3

BNR S3 V2, Freek'd Corn Toon, Cobb AP V3, Cobb FMIC w/ JBR piping, JBR WP 3.5 silicone, Cobb EBCS, Turbo XS Catless DP and TP, CPE Nexus CBE, Autotechs, GFB Hybrid BPV, Damond Trilogy mounts (FTMFW), Bilstein B14 Coils, RX8 R3s

Addikted To Boost is offline   Reply With Quote
 Old 07-28-2015, 07:03 AM   #17

RACER_X's Avatar

Join Date: Dec 2012
Location: Richmond, TX
Posts: 266   (View Stats)
iTrader: (1)
Rep Power: 0
RACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the world
Thanks: 5
Thanked 125 Times in 68 Posts
Groans: 0
Groaned at 31 Times in 14 Posts
(Thread Starter)
Not Ranked  0 score
Default

ok, I work in the industrial electrical world

I just checked and the allowable ampacity of an 8 ga wire is 70amps, 4 ga is 125amps

if they are putting a 4 ga wire and a 125 amp fuse, then you are risking your OE wiring harness burning up, as the fuse won't break till well over the threshold of the 8ga wire

the ampacity for Alu wire is less, 8ga = 55amps and 4 ga = 100amps
__________________
ΜΟΛΩΝ ΛΑΒΕ
2014 Honda Grom 125cc's of FURY! now more furious w/ 181cc's
2015 F150 Platinum

2012 MS3 Liquid Silver
Autotech HPFP
Cobb AP & CBE
Corksport FTB
Enkei Raijin 18x8 et45
JBR 3.0WP, RSB, RMM & SSP II
Stratified Tune
TrackMasters hood prop and ecu reloc.
TurboSmart BOV
RACER_X is offline   Reply With Quote
 Old 07-28-2015, 07:11 AM   #18

Addikted To Boost's Avatar

Join Date: Sep 2008
Location: Lynchburg, VA
Posts: 1,837   (View Stats)
iTrader: (17)
Rep Power: 0
Addikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the world
Thanks: 1,559
Thanked 1,498 Times in 432 Posts
Groans: 157
Groaned at 29 Times in 16 Posts
Not Ranked  0 score
Default



Racer, based on what I see, for aluminum at approx 140 Fahrenheit, it's closer to 55 amps? What am I missing?

Sent from my SM-G925V using tapatalkreplace
__________________
09 MGM MS3

BNR S3 V2, Freek'd Corn Toon, Cobb AP V3, Cobb FMIC w/ JBR piping, JBR WP 3.5 silicone, Cobb EBCS, Turbo XS Catless DP and TP, CPE Nexus CBE, Autotechs, GFB Hybrid BPV, Damond Trilogy mounts (FTMFW), Bilstein B14 Coils, RX8 R3s

Addikted To Boost is offline   Reply With Quote
The Following User Says Thank You to Addikted To Boost For This Useful Post:
chaser27 (07-28-2015)
 Old 07-28-2015, 07:14 AM   #19

RACER_X's Avatar

Join Date: Dec 2012
Location: Richmond, TX
Posts: 266   (View Stats)
iTrader: (1)
Rep Power: 0
RACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the world
Thanks: 5
Thanked 125 Times in 68 Posts
Groans: 0
Groaned at 31 Times in 14 Posts
(Thread Starter)
Not Ranked  0 score
Default

I added to my post, you're right alu is only rated at 55amps

though I'm sure everything is copper, both OE and TM's patch cord.

I think the problem is the proper connections are hard to make on a 8gu wire and also keeping that mechanical linkage insulated

we had a vendor come in last week and show us some crimping device that was the size of a portable drill that could exert 6 tons of crimping pressure, lol I need one of those.

and why can't I log into this forum on tapatalkreplace?? grr
__________________
ΜΟΛΩΝ ΛΑΒΕ
2014 Honda Grom 125cc's of FURY! now more furious w/ 181cc's
2015 F150 Platinum

2012 MS3 Liquid Silver
Autotech HPFP
Cobb AP & CBE
Corksport FTB
Enkei Raijin 18x8 et45
JBR 3.0WP, RSB, RMM & SSP II
Stratified Tune
TrackMasters hood prop and ecu reloc.
TurboSmart BOV
RACER_X is offline   Reply With Quote
 Old 07-28-2015, 07:15 AM   #20

Addikted To Boost's Avatar

Join Date: Sep 2008
Location: Lynchburg, VA
Posts: 1,837   (View Stats)
iTrader: (17)
Rep Power: 0
Addikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the world
Thanks: 1,559
Thanked 1,498 Times in 432 Posts
Groans: 157
Groaned at 29 Times in 16 Posts
Not Ranked  0 score
Default

The patch cord that comes with the kit is 4 awg aluminum

Sent from my SM-G925V using tapatalkreplace
__________________
09 MGM MS3

BNR S3 V2, Freek'd Corn Toon, Cobb AP V3, Cobb FMIC w/ JBR piping, JBR WP 3.5 silicone, Cobb EBCS, Turbo XS Catless DP and TP, CPE Nexus CBE, Autotechs, GFB Hybrid BPV, Damond Trilogy mounts (FTMFW), Bilstein B14 Coils, RX8 R3s

Addikted To Boost is offline   Reply With Quote
 Old 07-28-2015, 07:19 AM   #21

RACER_X's Avatar

Join Date: Dec 2012
Location: Richmond, TX
Posts: 266   (View Stats)
iTrader: (1)
Rep Power: 0
RACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the world
Thanks: 5
Thanked 125 Times in 68 Posts
Groans: 0
Groaned at 31 Times in 14 Posts
(Thread Starter)
Not Ranked  0 score
Default

ok the new kit? so then the fuse should be set 55amp fuse?

the old kit w/ 8ga was copper.
__________________
ΜΟΛΩΝ ΛΑΒΕ
2014 Honda Grom 125cc's of FURY! now more furious w/ 181cc's
2015 F150 Platinum

2012 MS3 Liquid Silver
Autotech HPFP
Cobb AP & CBE
Corksport FTB
Enkei Raijin 18x8 et45
JBR 3.0WP, RSB, RMM & SSP II
Stratified Tune
TrackMasters hood prop and ecu reloc.
TurboSmart BOV
RACER_X is offline   Reply With Quote
 Old 07-28-2015, 07:19 AM   #22

jthough1's Avatar

Join Date: Aug 2012
Location: Friendly and affordable Northern NJ
Posts: 70   (View Stats)
iTrader: (0)
Rep Power: 0
jthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to behold
Thanks: 19
Thanked 18 Times in 13 Posts
Groans: 3
Groaned at 0 Times in 0 Posts
Not Ranked  0 score
Default

Originally Posted by Addikted To Boost View Post
The patch cable is aluminum, oem is copper, based on some quick Google searches, I'm not sure that 4 gauge aluminum cable can support the current requirements of this application.
This is where i was headed. Aluminum doesnt handle heat nearly as well as copper. Thermal conductivity of alum is half that of copper and the melting pt of alum is much lower. But it is cheaper to produce...

Originally Posted by RACER_X View Post
ok, I work in the industrial electrical world

I just checked and the allowable ampacity of an 8 ga wire is 50amps, 4 ga is 125amps

if they are putting a 4 ga wire and a 125 amp fuse, then you are risking your OE wiring harness burning up, as the fuse won't break till well over the threshold of the 8ga wire
I agree with you...the weak link right now is the connection between the aluminum and copper wire. We know that for whatever reason you have enough amp draw to cause the alum wire to heat up and melt. Switching to a higher gauge cable allows more amps to flow but that just means even more heat. It might be worth it to try an 8 gauge copper cable and see if that fails as well. At the least put a fuse in to match the 8 gauge Copper cable to protect that...and see if the fuse fails?

Anyone else have this issue? Im curious if other ppl's cables are melting too.
__________________
06' MS6 White Pearl - Blown Motor - Rebuilding
jthough1 is offline   Reply With Quote
 Old 07-28-2015, 07:21 AM   #23

Addikted To Boost's Avatar

Join Date: Sep 2008
Location: Lynchburg, VA
Posts: 1,837   (View Stats)
iTrader: (17)
Rep Power: 0
Addikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the world
Thanks: 1,559
Thanked 1,498 Times in 432 Posts
Groans: 157
Groaned at 29 Times in 16 Posts
Not Ranked  0 score
Default

What I ended up doing on my brothers was making a new patch using high quality 4 gauge copper, and a new fuse holder.

Sent from my SM-G925V using tapatalkreplace
__________________
09 MGM MS3

BNR S3 V2, Freek'd Corn Toon, Cobb AP V3, Cobb FMIC w/ JBR piping, JBR WP 3.5 silicone, Cobb EBCS, Turbo XS Catless DP and TP, CPE Nexus CBE, Autotechs, GFB Hybrid BPV, Damond Trilogy mounts (FTMFW), Bilstein B14 Coils, RX8 R3s

Addikted To Boost is offline   Reply With Quote
 Old 07-28-2015, 07:23 AM   #24

jthough1's Avatar

Join Date: Aug 2012
Location: Friendly and affordable Northern NJ
Posts: 70   (View Stats)
iTrader: (0)
Rep Power: 0
jthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to behold
Thanks: 19
Thanked 18 Times in 13 Posts
Groans: 3
Groaned at 0 Times in 0 Posts
Not Ranked  0 score
Default

Originally Posted by Addikted To Boost View Post
What I ended up doing on my brothers was making a new patch using high quality 4 gauge copper, and a new fuse holder.

Sent from my SM-G925V using tapatalkreplace
This ^^^
__________________
06' MS6 White Pearl - Blown Motor - Rebuilding
jthough1 is offline   Reply With Quote
 Old 07-28-2015, 07:24 AM   #25

RACER_X's Avatar

Join Date: Dec 2012
Location: Richmond, TX
Posts: 266   (View Stats)
iTrader: (1)
Rep Power: 0
RACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the world
Thanks: 5
Thanked 125 Times in 68 Posts
Groans: 0
Groaned at 31 Times in 14 Posts
(Thread Starter)
Not Ranked  0 score
Default

Originally Posted by Addikted To Boost View Post
What I ended up doing on my brothers was making a new patch using high quality 4 gauge copper, and a new fuse holder.

Sent from my SM-G925V using tapatalkreplace
but what size fuse?

Originally Posted by jthough1 View Post
This is where i was headed. Aluminum doesnt handle heat nearly as well as copper. Thermal conductivity of alum is half that of copper and the melting pt of alum is much lower. But it is cheaper to produce...



I agree with you...the weak link right now is the connection between the aluminum and copper wire. We know that for whatever reason you have enough amp draw to cause the alum wire to heat up and melt. Switching to a higher gauge cable allows more amps to flow but that just means even more heat. It might be worth it to try an 8 gauge copper cable and see if that fails as well. At the least put a fuse in to match the 8 gauge Copper cable to protect that...and see if the fuse fails?

Anyone else have this issue? Im curious if other ppl's cables are melting too.
it would be better to use copper and copper so the heating a cooling properties are similar.

the old original wire was 8ga copper wiring , the new is 4ga alu wiring w/ a fuse (size = ?)

really an 8 ga copper patch w/ a 70a fuse would ideally be what you need and cut off the OE ring connector and bolt it to the inline fuse
__________________
ΜΟΛΩΝ ΛΑΒΕ
2014 Honda Grom 125cc's of FURY! now more furious w/ 181cc's
2015 F150 Platinum

2012 MS3 Liquid Silver
Autotech HPFP
Cobb AP & CBE
Corksport FTB
Enkei Raijin 18x8 et45
JBR 3.0WP, RSB, RMM & SSP II
Stratified Tune
TrackMasters hood prop and ecu reloc.
TurboSmart BOV
RACER_X is offline   Reply With Quote
 Old 07-28-2015, 07:28 AM   #26

jthough1's Avatar

Join Date: Aug 2012
Location: Friendly and affordable Northern NJ
Posts: 70   (View Stats)
iTrader: (0)
Rep Power: 0
jthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to behold
Thanks: 19
Thanked 18 Times in 13 Posts
Groans: 3
Groaned at 0 Times in 0 Posts
Not Ranked  0 score
Default

Originally Posted by RACER_X View Post
but what size fuse?
Thats hard to say without knowing the true amp draw...do you have access to an amp meter? Although looking at the pic that looks like a tight space to fit one in.
__________________
06' MS6 White Pearl - Blown Motor - Rebuilding
jthough1 is offline   Reply With Quote
 Old 07-28-2015, 07:30 AM   #27

WAMBUSHHHH!'s Avatar

Join Date: May 2013
Location: Bryn Mawr, PA
Posts: 1,599   (View Stats)
iTrader: (1)
Rep Power: 0
WAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the world
Thanks: 1,449
Thanked 1,336 Times in 715 Posts
Groans: 9
Groaned at 3 Times in 3 Posts
Not Ranked  0 score
Default

Originally Posted by Raider View Post
@JgamB;, you know this product well. What are we seeing here? Is this the new one?
So the OP looks to be in the same position I was. Admittedly, I have not looked at the new design nor had it on my car since I went a different route after mine caught fire. But I can with almost 100% certainty say that the connection at the nut and bolt came lose, arced and physics took over with the heat wrap/electrical tape over the lose arcing connection.

The pictures provided by @Addikted To Boost; seem to be the revised extension so I'm not sure what's going on there. Like I said, its not something I had on my car. I can say however that with the new extension I haven't heard/seen anyone with an issue like the original extension I had/OP had.
__________________
2013 LSM Mazdaspeed3 - stocked out and traded 6/5/2017
2017 LGM Golf R - South Bend stage 3 daily clutch / IE intake / Wagner IC / AWE downpipe / Indvidia catback / EQT Tuned

2004 Yamaha R6 - Micron Ricer Pipe / PC
2005 Honda CBR 600 F4i - R.I.P. 10/29/13
WAMBUSHHHH! is offline   Reply With Quote
The Following 2 Users Say Thank You to WAMBUSHHHH! For This Useful Post:
chaser27 (07-28-2015), Raider (07-28-2015)
 Old 07-28-2015, 07:33 AM   #28

RACER_X's Avatar

Join Date: Dec 2012
Location: Richmond, TX
Posts: 266   (View Stats)
iTrader: (1)
Rep Power: 0
RACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the world
Thanks: 5
Thanked 125 Times in 68 Posts
Groans: 0
Groaned at 31 Times in 14 Posts
(Thread Starter)
Not Ranked  0 score
Default

Originally Posted by jthough1 View Post
Thats hard to say without knowing the true amp draw...do you have access to an amp meter? Although looking at the pic that looks like a tight space to fit one in.
really you should only go as high as the wire is rated for (70a) you want the fuse to pop before the wire melts.

Originally Posted by WAMBUSHHHH! View Post
So the OP looks to be in the same position I was. Admittedly, I have not looked at the new design nor had it on my car since I went a different route after mine caught fire. But I can with almost 100% certainty say that the connection at the nut and bolt came lose, arced and physics took over with the heat wrap/electrical tape over the lose arcing connection.

The pictures provided by @Addikted To Boost; seem to be the revised extension so I'm not sure what's going on there. Like I said, its not something I had on my car. I can say however that with the new extension I haven't heard/seen anyone with an issue like the original extension I had/OP had.
to be fair, mine's been on the car for a yr, so you don't notice it immediately, or even a few months. my nuts were tight, it think it has to do more w/ insulating it.

do you know what size fuse they're putting in the new cord? and is it alu cabling?
__________________
ΜΟΛΩΝ ΛΑΒΕ
2014 Honda Grom 125cc's of FURY! now more furious w/ 181cc's
2015 F150 Platinum

2012 MS3 Liquid Silver
Autotech HPFP
Cobb AP & CBE
Corksport FTB
Enkei Raijin 18x8 et45
JBR 3.0WP, RSB, RMM & SSP II
Stratified Tune
TrackMasters hood prop and ecu reloc.
TurboSmart BOV

Last edited by RACER_X; 07-28-2015 at 07:36 AM. Reason: MSF Database - Automerged Doublepost
RACER_X is offline   Reply With Quote
The Following User Says Thank You to RACER_X For This Useful Post:
WAMBUSHHHH! (07-28-2015)
 Old 07-28-2015, 07:34 AM   #29

Addikted To Boost's Avatar

Join Date: Sep 2008
Location: Lynchburg, VA
Posts: 1,837   (View Stats)
iTrader: (17)
Rep Power: 0
Addikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the world
Thanks: 1,559
Thanked 1,498 Times in 432 Posts
Groans: 157
Groaned at 29 Times in 16 Posts
Not Ranked  0 score
Default

I dont recall exactly where the line that you cut is going... it is the one with the "block" looking thing on it (i believe that is called a fusible link). On the gen one you are instructed to cut it off and attach your fuse there. I think it might be the feed from the alternator to the battery. I only make that guess since on my brothers car when the cable and fuse holder melted and messed everything up, it fried his alternator's voltage regulator at the same time. I could be wrong though.
__________________
09 MGM MS3

BNR S3 V2, Freek'd Corn Toon, Cobb AP V3, Cobb FMIC w/ JBR piping, JBR WP 3.5 silicone, Cobb EBCS, Turbo XS Catless DP and TP, CPE Nexus CBE, Autotechs, GFB Hybrid BPV, Damond Trilogy mounts (FTMFW), Bilstein B14 Coils, RX8 R3s

Addikted To Boost is offline   Reply With Quote
 Old 07-28-2015, 07:37 AM   #30

jthough1's Avatar

Join Date: Aug 2012
Location: Friendly and affordable Northern NJ
Posts: 70   (View Stats)
iTrader: (0)
Rep Power: 0
jthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to beholdjthough1 is a splendid one to behold
Thanks: 19
Thanked 18 Times in 13 Posts
Groans: 3
Groaned at 0 Times in 0 Posts
Not Ranked  0 score
Default

Originally Posted by RACER_X View Post
really you should only go as high as the wire is rated for (70a) you want the fuse to pop before the wire melts.
You are correct...I was assuming there is no fault and that the amp load is behaving as designed for the 8 ga copper cable since its not burning up and you havent fried anything yet :fingerscrossed:

To be safe size the fuse slightly below the allowable amps for an 8 ga insulated copper cable.
__________________
06' MS6 White Pearl - Blown Motor - Rebuilding
jthough1 is offline   Reply With Quote
 Old 07-28-2015, 07:43 AM   #31

WAMBUSHHHH!'s Avatar

Join Date: May 2013
Location: Bryn Mawr, PA
Posts: 1,599   (View Stats)
iTrader: (1)
Rep Power: 0
WAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the worldWAMBUSHHHH! is the leader of the world
Thanks: 1,449
Thanked 1,336 Times in 715 Posts
Groans: 9
Groaned at 3 Times in 3 Posts
Not Ranked  0 score
Default

Originally Posted by RACER_X View Post
to be fair, mine's been on the car for a yr, so you don't notice it immediately, or even a few months. my nuts were tight, it think it has to do more w/ insulating it.

do you know what size fuse they're putting in the new cord? and is it alu cabling?
True true, I guess I should have been a little more clear that I'm 100% confident that was what happened to mine and consequently what looks to have happened to yours. With that said, are you running anything that would take an excess draw? like a new amp or something along those lines?
__________________
2013 LSM Mazdaspeed3 - stocked out and traded 6/5/2017
2017 LGM Golf R - South Bend stage 3 daily clutch / IE intake / Wagner IC / AWE downpipe / Indvidia catback / EQT Tuned

2004 Yamaha R6 - Micron Ricer Pipe / PC
2005 Honda CBR 600 F4i - R.I.P. 10/29/13
WAMBUSHHHH! is offline   Reply With Quote
 Old 07-28-2015, 07:47 AM   #32

RACER_X's Avatar

Join Date: Dec 2012
Location: Richmond, TX
Posts: 266   (View Stats)
iTrader: (1)
Rep Power: 0
RACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the world
Thanks: 5
Thanked 125 Times in 68 Posts
Groans: 0
Groaned at 31 Times in 14 Posts
(Thread Starter)
Not Ranked  0 score
Default

nope, other then a radar detector
__________________
ΜΟΛΩΝ ΛΑΒΕ
2014 Honda Grom 125cc's of FURY! now more furious w/ 181cc's
2015 F150 Platinum

2012 MS3 Liquid Silver
Autotech HPFP
Cobb AP & CBE
Corksport FTB
Enkei Raijin 18x8 et45
JBR 3.0WP, RSB, RMM & SSP II
Stratified Tune
TrackMasters hood prop and ecu reloc.
TurboSmart BOV
RACER_X is offline   Reply With Quote
 Old 07-28-2015, 07:47 AM   #33

Addikted To Boost's Avatar

Join Date: Sep 2008
Location: Lynchburg, VA
Posts: 1,837   (View Stats)
iTrader: (17)
Rep Power: 0
Addikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the world
Thanks: 1,559
Thanked 1,498 Times in 432 Posts
Groans: 157
Groaned at 29 Times in 16 Posts
Not Ranked  0 score
Default

If the line that we have to cut is in fact coming from the alternator, I think that a 125 amp fuse is appropriate. Is that wrong?

Sent from my SM-G925V using tapatalkreplace
__________________
09 MGM MS3

BNR S3 V2, Freek'd Corn Toon, Cobb AP V3, Cobb FMIC w/ JBR piping, JBR WP 3.5 silicone, Cobb EBCS, Turbo XS Catless DP and TP, CPE Nexus CBE, Autotechs, GFB Hybrid BPV, Damond Trilogy mounts (FTMFW), Bilstein B14 Coils, RX8 R3s

Addikted To Boost is offline   Reply With Quote
 Old 07-28-2015, 07:59 AM   #34

JgamB's Avatar

Join Date: Mar 2013
Location: Huntsville, AL
Posts: 2,566   (View Stats)
iTrader: (2)
Rep Power: 0
JgamB is the leader of the worldJgamB is the leader of the worldJgamB is the leader of the worldJgamB is the leader of the worldJgamB is the leader of the worldJgamB is the leader of the worldJgamB is the leader of the worldJgamB is the leader of the worldJgamB is the leader of the worldJgamB is the leader of the worldJgamB is the leader of the world
Thanks: 3,402
Thanked 4,236 Times in 1,437 Posts
Groans: 15
Groaned at 21 Times in 17 Posts
Not Ranked  0 score
Default

I responded in the other thread as well - But yes, Arthur is on vacation for the week.

I've run my car in both configurations (initial wiring w/ ring terminals and fusible link) for a long time without a problem, but there's no denying something is amiss. I do run several additional draws on my electrical system as well - 1600w amp, laser jammers, meth pump, cameras, etc.

I've felt my wiring after shutting down the car (with these incidents as incentive) and it was no warmer than the rest of the surrounding engine bay. It appears to be simple enough to splice the wires, but apparently it has to be making optimal contact or it gets hot enough to melt.

I would suggest a 6 gauge butt splice, crush the hell out of both ends, wrap it well and make sure it's zip tied where it won't rub anything. (pretty sure the replacement wires were 6ga).
__________________
Manley forged long block, secret snail, manifolds, and 2gal E85 tune running like a champ - about to dial in a lot of meth and see what we've got.

13.10@117.1 full weight DD no prep 1/4 (BNR S3 / E85)
JgamB is offline   Reply With Quote
 Old 07-28-2015, 08:08 AM   #35

RACER_X's Avatar

Join Date: Dec 2012
Location: Richmond, TX
Posts: 266   (View Stats)
iTrader: (1)
Rep Power: 0
RACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the world
Thanks: 5
Thanked 125 Times in 68 Posts
Groans: 0
Groaned at 31 Times in 14 Posts
(Thread Starter)
Not Ranked  0 score
Default

Originally Posted by Addikted To Boost View Post
If the line that we have to cut is in fact coming from the alternator, I think that a 125 amp fuse is appropriate. Is that wrong?

Sent from my SM-G925V using tapatalkreplace
you want to put a breaker appropriate for the wire. if anything the breaker is undersized from the wire even, better for the breaker to POP vs wiring melt.

so if you put a 125amp breaker on an 8ga wire, that's not good. as 8ga is only rated for 70amps.
__________________
ΜΟΛΩΝ ΛΑΒΕ
2014 Honda Grom 125cc's of FURY! now more furious w/ 181cc's
2015 F150 Platinum

2012 MS3 Liquid Silver
Autotech HPFP
Cobb AP & CBE
Corksport FTB
Enkei Raijin 18x8 et45
JBR 3.0WP, RSB, RMM & SSP II
Stratified Tune
TrackMasters hood prop and ecu reloc.
TurboSmart BOV
RACER_X is offline   Reply With Quote
 Old 07-28-2015, 08:10 AM   #36

Addikted To Boost's Avatar

Join Date: Sep 2008
Location: Lynchburg, VA
Posts: 1,837   (View Stats)
iTrader: (17)
Rep Power: 0
Addikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the world
Thanks: 1,559
Thanked 1,498 Times in 432 Posts
Groans: 157
Groaned at 29 Times in 16 Posts
Not Ranked  0 score
Default

Ok so ideally just extending it with an 8 gauge copper patch wire would be best then, with a 75 amp inline fuse. That way it stays the same wire size the whole way

Sent from my SM-G925V using tapatalkreplace
__________________
09 MGM MS3

BNR S3 V2, Freek'd Corn Toon, Cobb AP V3, Cobb FMIC w/ JBR piping, JBR WP 3.5 silicone, Cobb EBCS, Turbo XS Catless DP and TP, CPE Nexus CBE, Autotechs, GFB Hybrid BPV, Damond Trilogy mounts (FTMFW), Bilstein B14 Coils, RX8 R3s

Addikted To Boost is offline   Reply With Quote
 Old 07-28-2015, 08:13 AM   #37

RACER_X's Avatar

Join Date: Dec 2012
Location: Richmond, TX
Posts: 266   (View Stats)
iTrader: (1)
Rep Power: 0
RACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the worldRACER_X is the leader of the world
Thanks: 5
Thanked 125 Times in 68 Posts
Groans: 0
Groaned at 31 Times in 14 Posts
(Thread Starter)
Not Ranked  0 score
Default

yes, that would be fine

the connection points are critical, so if you have a splice inline that's a potential weak point. so it's best if you could 1 continuous piece of cable

does that line go straight to the alternator?
__________________
ΜΟΛΩΝ ΛΑΒΕ
2014 Honda Grom 125cc's of FURY! now more furious w/ 181cc's
2015 F150 Platinum

2012 MS3 Liquid Silver
Autotech HPFP
Cobb AP & CBE
Corksport FTB
Enkei Raijin 18x8 et45
JBR 3.0WP, RSB, RMM & SSP II
Stratified Tune
TrackMasters hood prop and ecu reloc.
TurboSmart BOV
RACER_X is offline   Reply With Quote
 Old 07-28-2015, 08:13 AM   #38

Addikted To Boost's Avatar

Join Date: Sep 2008
Location: Lynchburg, VA
Posts: 1,837   (View Stats)
iTrader: (17)
Rep Power: 0
Addikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the worldAddikted To Boost is the leader of the world
Thanks: 1,559
Thanked 1,498 Times in 432 Posts
Groans: 157
Groaned at 29 Times in 16 Posts
Not Ranked  0 score
Default

I'm really not sure, I'm gonna double check later

Sent from my SM-G925V using tapatalkreplace
__________________
09 MGM MS3

BNR S3 V2, Freek'd Corn Toon, Cobb AP V3, Cobb FMIC w/ JBR piping, JBR WP 3.5 silicone, Cobb EBCS, Turbo XS Catless DP and TP, CPE Nexus CBE, Autotechs, GFB Hybrid BPV, Damond Trilogy mounts (FTMFW), Bilstein B14 Coils, RX8 R3s

Addikted To Boost is offline   Reply With Quote
 Old 07-28-2015, 08:16 AM   #39

tegxsi's Avatar

Join Date: Oct 2011
Location: San Leandro, CA
Posts: 1,281   (View Stats)
iTrader: (5)
Rep Power: 0
tegxsi is the leader of the worldtegxsi is the leader of the worldtegxsi is the leader of the worldtegxsi is the leader of the worldtegxsi is the leader of the worldtegxsi is the leader of the worldtegxsi is the leader of the worldtegxsi is the leader of the worldtegxsi is the leader of the worldtegxsi is the leader of the worldtegxsi is the leader of the world
Thanks: 460
Thanked 588 Times in 396 Posts
Groans: 87
Groaned at 0 Times in 0 Posts
Not Ranked  0 score
Default

The fuse isn't even blowing. It seems that the wire is heating up from contact resistance. Extending the wire with a fuse block and crimp ring terminal creates additional multiple points of contact resistance the OE wire didn't have.

I say forget the fuse block. Crimp with a copper butt connector, add solder, and heat shrink. Solder is really a must. The thing is that this method may not be installer friendly to the average user but it's the proper way to extend a battery connection.
Addikted To Boost likes this.
__________________
2018 Audi RS3
2013 CWP Mazdaspeed3 - CS Turbo
2007 Acura TSX 6MT
tegxsi is offline   Reply With Quote
The Following 2 Users Say Thank You to tegxsi For This Useful Post:
chaser27 (07-28-2015), phate (07-28-2015)
 Old 07-28-2015, 08:21 AM   #40

g00s3y's Avatar

Join Date: Oct 2013
Location: Fort Myers, FL
Posts: 2,127   (View Stats)
iTrader: (7)
Rep Power: 0
g00s3y is the leader of the worldg00s3y is the leader of the worldg00s3y is the leader of the worldg00s3y is the leader of the worldg00s3y is the leader of the worldg00s3y is the leader of the worldg00s3y is the leader of the worldg00s3y is the leader of the worldg00s3y is the leader of the worldg00s3y is the leader of the worldg00s3y is the leader of the world
Thanks: 976
Thanked 2,167 Times in 964 Posts
Groans: 438
Groaned at 11 Times in 11 Posts
Not Ranked  0 score
Default

Easiest/cheapest way to relocate the ECU, move to on top of the fuse box, secure with screws, done. No extensions of any kind needed.
Attached Images
File Type: jpg Untitled.jpg (270.4 KB, 18 views)
__________________
All good things must come to an end...
g00s3y is offline   Reply With Quote
The Following 3 Users Say Thank You to g00s3y For This Useful Post:
Mauro_Penguin (07-28-2015), Putin 2.3T (08-01-2015), WetzMS3 (07-28-2015)
Reply


Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)


Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
Where is a good ground for a jumper cable (besides the - on the battery) cuethenoise Gen2 MS3 General Discussion 10 01-06-2014 07:18 PM
JBR battery box with tight cable harness mhebert2001 Gen2 MS3 General Discussion 26 07-30-2013 08:40 PM
BMW recalls 1.3 million cars worldwide for battery cable issue Haltech Automotive News 0 03-26-2012 01:30 PM
REPORT: GM voluntarily recalling Camaro for battery cable issue Haltech Automotive News 0 05-06-2009 11:30 AM
Motorola Cable Signal Booster for TV / Cable Modem $38.24 Free Shipping at Buy.com Haltech Hot Deals Section 0 04-16-2008 11:50 AM


All times are GMT -7. The time now is 07:29 AM.
Powered by vBulletin® Version 3.8.6
Copyright ©2000 - 2020, Jelsoft Enterprises Ltd.
SEO by vBSEO ©2011, Crawlability, Inc.
vB.Sponsors
Template-Modifications by TMS
©Copyright 2008 ; 2019 Cymru Internet Services LLC | FYHN™ Autosports HQ
Ad Management plugin by RedTyger
Page generated in 0.58496 seconds with 30 queries
