Default How to get rid of airbag light with aftermarket seats

So I searched and searched for a proper thread that shows you specifically what to do to get rid of the airbag light and keep your airbags functional with aftermarket seats and I found no definitive how-to, so here it is.

What you will need to buy:

3 resistors, 2.7ohm 1/4 watt 5% tolerance (ive read multiple threads that say 2.4ohm and 2.8ohm may work as well but I used 2.7ohm on both sides with success). I bought these on amazon in a 100 pack for like $5 but if you are looking for cheaper then head over to Mouser Electronics - Electronic Components Distributor for individuals for $0.10 each.

So first on the driver's side you will need to get your seat harness out of the driver's seat and do not cut any plugs off, I know its a pain in the ass to get it out but just do it right in case you decide to stock out and keep your aftermarket seats. Next you will need the seat position sensor (if you have power seat) or you will throw code 49 (I attached a picture of what this sensor looks like). To get this sensor you will need to unbolt the lower seat part of the seat and remove the 2 cross head screws. Dont forget the seat belt buckle as well. Now insert the resistor into the yellow plug under the seat and tape it up and and shove the position sensor under your newly installed seat and you are done with this side.


Now on the passenger side it gets a little more fun. First off the lower part of the seat belt attaches to the seat so if your rails dont come with a place to attach this then just bolt it to the rear seat bolt like i did. Now on your passenger seat you will need the harness, also a little black rectangular control module, and the seat weight sensors. These sensors are bolted in-between the seat rails and the seat brackets that bolt to the floor. Also dont forget your buckle. So you put the resistor in the yellow plug like on the driver's side and youll also need to fit those seat weight sensors (which are as long as the rails) and the control module all underneath the seat which happens to be where the bose amplifier sits as well so its a tight fit i know. You will also need to put a resistor in the seat belt plug on the vehicle side harness to keep the passenger airbag light off while the seal belt is plugged in.

So now i dont think im forgetting anything and you should not have an airbag light

In case you get a light it should flash the code to you so for reference the ones i ran across are ass follows:
Code 23 is the passenger side yellow plug
Code 22 is the driver's side yellow plug
Code 49 is the driver's seat position sensor

I have a ton of these resistors left so i dont mind mailing anyone a couple. If you need tem just pm me.

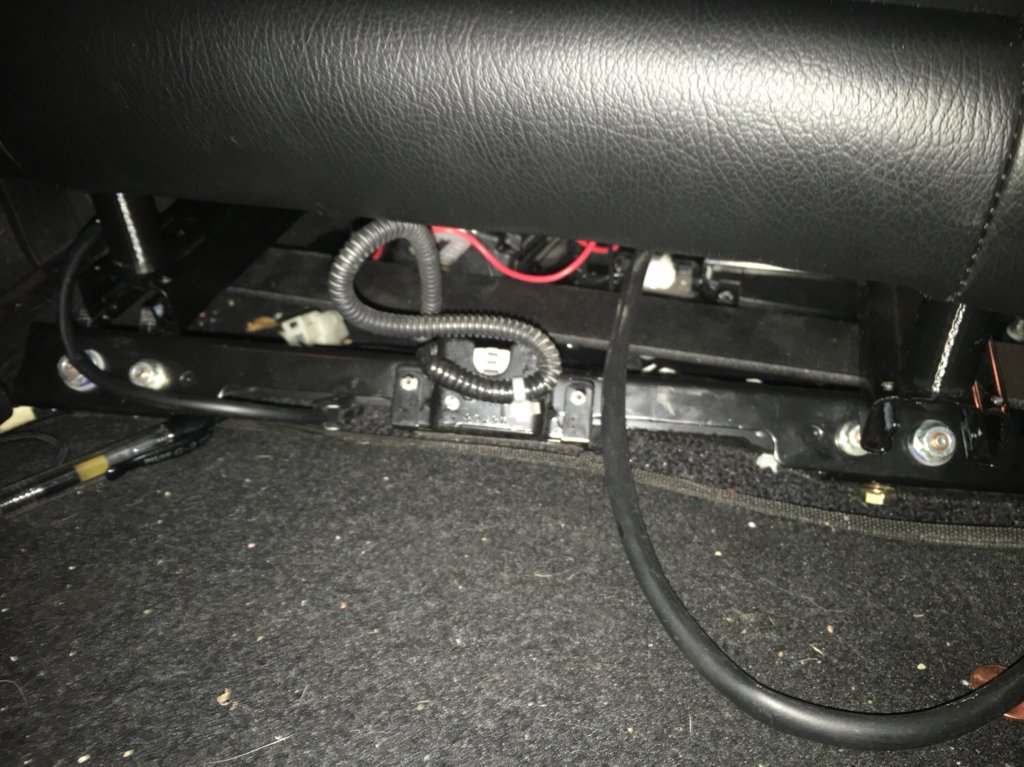

Attached Images

File Type: jpeg File_000 (1).jpeg (1.75 MB, 148 views)
File Type: jpg 12552765_10206123282816267_2248075443645354440_n.jpg (54.1 KB, 139 views)
__________________
06 MS6 GT Titanium Gray II Metallic

Last edited by davychronic; 04-04-2016 at 03:08 PM.
davychronic is offline   Reply With Quote
The Following 7 Users Say Thank You to davychronic For This Useful Post:
Code Monkey (01-21-2016), Doucems6 (02-03-2016), Lewis7789 (02-04-2016), MAZDAMARK (03-29-2019), Mazdazilla6 (11-01-2016), TiGraySpeed6 (01-21-2016), Zoomer_Esiason (03-21-2016)
 Old 03-07-2016, 07:24 AM   #2

Lewis7789's Avatar

Join Date: Mar 2013
Location: Akron, OH
Posts: 290   (View Stats)
iTrader: (3)
Rep Power: 0
Lewis7789 is the leader of the worldLewis7789 is the leader of the worldLewis7789 is the leader of the worldLewis7789 is the leader of the worldLewis7789 is the leader of the worldLewis7789 is the leader of the worldLewis7789 is the leader of the worldLewis7789 is the leader of the worldLewis7789 is the leader of the worldLewis7789 is the leader of the worldLewis7789 is the leader of the world
Thanks: 55
Thanked 267 Times in 122 Posts
Groans: 1
Groaned at 0 Times in 0 Posts
Not Ranked  0 score
Default

Thanks for the how-to and for mailing the resistors, mate! It's much appreciated.
davychronic likes this.
__________________
2006 MS6 aka "Fatty". Only 278hp but I'll catch you in the corners.
Lewis7789 is offline   Reply With Quote
 Old 03-07-2016, 08:49 AM   #3

foodtime's Avatar

Join Date: Mar 2010
Location: Italiano
Posts: 225   (View Stats)
iTrader: (0)
Rep Power: 0
foodtime has a reputation beyond reputefoodtime has a reputation beyond reputefoodtime has a reputation beyond reputefoodtime has a reputation beyond reputefoodtime has a reputation beyond reputefoodtime has a reputation beyond reputefoodtime has a reputation beyond reputefoodtime has a reputation beyond reputefoodtime has a reputation beyond reputefoodtime has a reputation beyond reputefoodtime has a reputation beyond repute
Thanks: 22
Thanked 55 Times in 38 Posts
Groans: 0
Groaned at 1 Time in 1 Post
Not Ranked  0 score
Default

Nice looking seats. Does your airbag say, "airbag off" whenever a passenger is sitting in your front, passenger seat while buckled in?
foodtime is offline   Reply With Quote
 Old 03-07-2016, 09:28 AM   #4

davychronic's Avatar

Join Date: Feb 2015
Location: Palmer, Iowa
Posts: 1,155   (View Stats)
iTrader: (0)
Rep Power: 0
davychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the world
Thanks: 152
Thanked 320 Times in 184 Posts
Groans: 0
Groaned at 1 Time in 1 Post
(Thread Starter)
Not Ranked  0 score
Default

Originally Posted by foodtime View Post
Nice looking seats. Does your airbag say, "airbag off" whenever a passenger is sitting in your front, passenger seat while buckled in?

No you need to put a resistor in the seat belt plug to trick the computer into thinking no one is in the seat and keep the airbag on. I have not found a way to keep the seat weight sensors functional yet
__________________
06 MS6 GT Titanium Gray II Metallic

Last edited by davychronic; 04-04-2016 at 03:09 PM.
davychronic is offline   Reply With Quote
 Old 11-10-2017, 01:17 PM   #5

ataggart's Avatar

Join Date: Jul 2014
Location: millersville, Maryland
Posts: 62   (View Stats)
iTrader: (0)
Rep Power: 0
ataggart is a jewel in the roughataggart is a jewel in the roughataggart is a jewel in the roughataggart is a jewel in the rough
Thanks: 8
Thanked 7 Times in 5 Posts
Groans: 0
Groaned at 1 Time in 1 Post
Not Ranked  0 score
Default

Originally Posted by davychronic View Post
So I searched and searched for a proper thread that shows you specifically what to do to get rid of the airbag light and keep your airbags functional with aftermarket seats and I found no definitive how-to, so here it is.

What you will need to buy:

3 resistors, 2.7ohm 1/4 watt 5% tolerance (ive read multiple threads that say 2.4ohm and 2.8ohm may work as well but I used 2.7ohm on both sides with success). I bought these on amazon in a 100 pack for like $5 but if you are looking for cheaper then head over to Mouser Electronics - Electronic Components Distributor for individuals for $0.10 each.

So first on the driver's side you will need to get your seat harness out of the driver's seat and do not cut any plugs off, I know its a pain in the ass to get it out but just do it right in case you decide to stock out and keep your aftermarket seats. Next you will need the seat position sensor (if you have power seat) or you will throw code 49 (I attached a picture of what this sensor looks like). To get this sensor you will need to unbolt the lower seat part of the seat and remove the 2 cross head screws. Dont forget the seat belt buckle as well. Now insert the resistor into the yellow plug under the seat and tape it up and and shove the position sensor under your newly installed seat and you are done with this side.


Now on the passenger side it gets a little more fun. First off the lower part of the seat belt attaches to the seat so if your rails dont come with a place to attach this then just bolt it to the rear seat bolt like i did. Now on your passenger seat you will need the harness, also a little black rectangular control module, and the seat weight sensors. These sensors are bolted in-between the seat rails and the seat brackets that bolt to the floor. Also dont forget your buckle. So you put the resistor in the yellow plug like on the driver's side and youll also need to fit those seat weight sensors (which are as long as the rails) and the control module all underneath the seat which happens to be where the bose amplifier sits as well so its a tight fit i know. You will also need to put a resistor in the seat belt plug on the vehicle side harness to keep the passenger airbag light off while the seal belt is plugged in.

So now i dont think im forgetting anything and you should not have an airbag light

In case you get a light it should flash the code to you so for reference the ones i ran across are ass follows:
Code 23 is the passenger side yellow plug
Code 22 is the driver's side yellow plug
Code 49 is the driver's seat position sensor

I have a ton of these resistors left so i dont mind mailing anyone a couple. If you need tem just pm me.
Sorry to bring up old thread but I am trying to do this in my pu and I was told to use the 2.4 ohm by another pu owner with no success and then he said try 2.8 and 2.8 is not working either. Real confused at this point. I just want to drive my car again lol

Thanks in advance

Sent from my SM-G935V using Tapatalk
ataggart is offline   Reply With Quote
 Old 11-10-2017, 03:14 PM   #6

davychronic's Avatar

Join Date: Feb 2015
Location: Palmer, Iowa
Posts: 1,155   (View Stats)
iTrader: (0)
Rep Power: 0
davychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the world
Thanks: 152
Thanked 320 Times in 184 Posts
Groans: 0
Groaned at 1 Time in 1 Post
(Thread Starter)
Not Ranked  0 score
Default

Originally Posted by ataggart View Post
Sorry to bring up old thread but I am trying to do this in my pu and I was told to use the 2.4 ohm by another pu owner with no success and then he said try 2.8 and 2.8 is not working either. Real confused at this point. I just want to drive my car again lol

Thanks in advance

Sent from my SM-G935V using Tapatalk


Well i cant speak to the pu but in my car the 2.7 ohm 1/4 watt resistors i used have worked for over a year without issue. I would make sure the resistors are making contact with both terminals. I just stuck mine in the plugs and taped it all up.
__________________
06 MS6 GT Titanium Gray II Metallic
davychronic is offline   Reply With Quote
 Old 11-10-2017, 04:54 PM   #7

ataggart's Avatar

Join Date: Jul 2014
Location: millersville, Maryland
Posts: 62   (View Stats)
iTrader: (0)
Rep Power: 0
ataggart is a jewel in the roughataggart is a jewel in the roughataggart is a jewel in the roughataggart is a jewel in the rough
Thanks: 8
Thanked 7 Times in 5 Posts
Groans: 0
Groaned at 1 Time in 1 Post
Not Ranked  0 score
Default

Originally Posted by davychronic View Post
Well i cant speak to the pu but in my car the 2.7 ohm 1/4 watt resistors i used have worked for over a year without issue. I would make sure the resistors are making contact with both terminals. I just stuck mine in the plugs and taped it all up.
So I am going to try the one method you have with pulling the sensors for passenger side. I was told the pu only needed the resistor but it's definitely only the passenger side throwing the light. Gives me a code 16 which I can't find any Info on

Sent from my SM-G935V using Tapatalk
ataggart is offline   Reply With Quote
 Old 11-10-2017, 05:06 PM   #8

davychronic's Avatar

Join Date: Feb 2015
Location: Palmer, Iowa
Posts: 1,155   (View Stats)
iTrader: (0)
Rep Power: 0
davychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the world
Thanks: 152
Thanked 320 Times in 184 Posts
Groans: 0
Groaned at 1 Time in 1 Post
(Thread Starter)
Not Ranked  0 score
Default

Originally Posted by ataggart View Post
So I am going to try the one method you have with pulling the sensors for passenger side. I was told the pu only needed the resistor but it's definitely only the passenger side throwing the light. Gives me a code 16 which I can't find any Info on

Sent from my SM-G935V using Tapatalk


Yea so the passenger side is the real pain in the ass because of the weight sensors built into the rails. I had to disassemble the rails and keep part of them with the sensors attached.


Kind of hard to tell from the pic because i have them buried under my seat but those sensors i didnt use resistors in. On the passenger side i have a resistor in the airbag plug and the seat belt plug. So i am under the assumption that i tricked the car into thinking that no one is in the seat so im not sure if the passenger airbags will even blow in a wreck.
__________________
06 MS6 GT Titanium Gray II Metallic
davychronic is offline   Reply With Quote
 Old 11-10-2017, 05:20 PM   #9

ataggart's Avatar

Join Date: Jul 2014
Location: millersville, Maryland
Posts: 62   (View Stats)
iTrader: (0)
Rep Power: 0
ataggart is a jewel in the roughataggart is a jewel in the roughataggart is a jewel in the roughataggart is a jewel in the rough
Thanks: 8
Thanked 7 Times in 5 Posts
Groans: 0
Groaned at 1 Time in 1 Post
Not Ranked  0 score
Default

Originally Posted by davychronic View Post
Yea so the passenger side is the real pain in the ass because of the weight sensors built into the rails. I had to disassemble the rails and keep part of them with the sensors attached.


Kind of hard to tell from the pic because i have them buried under my seat but those sensors i didnt use resistors in. On the passenger side i have a resistor in the airbag plug and the seat belt plug. So i am under the assumption that i tricked the car into thinking that no one is in the seat so im not sure if the passenger airbags will even blow in a wreck.
Yeah I just had to do the airbag on driver side and was able to plug the seatbelt back in to module

Sent from my SM-G935V using Tapatalk
ataggart is offline   Reply With Quote
 Old 11-11-2017, 02:53 PM   #10

ataggart's Avatar

Join Date: Jul 2014
Location: millersville, Maryland
Posts: 62   (View Stats)
iTrader: (0)
Rep Power: 0
ataggart is a jewel in the roughataggart is a jewel in the roughataggart is a jewel in the roughataggart is a jewel in the rough
Thanks: 8
Thanked 7 Times in 5 Posts
Groans: 0
Groaned at 1 Time in 1 Post
Not Ranked  0 score
Default

Originally Posted by ataggart View Post
Yeah I just had to do the airbag on driver side and was able to plug the seatbelt back in to module

Sent from my SM-G935V using Tapatalk
Alright putting it out there for genpu owners.

I've used a 2.8 ohm 1/4 watt resistor in yellow airbag plugs.

Driver side I plugged the seatbelt connector back in.

Passenger side I removed the sensors and harness from stock seat/rails
Plugged the harness and all in and sat it next to Bose amp with that minimal space that we have there and....it works!

Airbag light codes

16 - sensors under passenger seat

25 - seatbelt connector on passenger

That's all I got!

Sent from my SM-G935V using Tapatalk
ataggart is offline   Reply With Quote
 Old 01-01-2018, 09:10 PM   #11

mazda3415's Avatar

Join Date: Nov 2016
Posts: 1   (View Stats)
iTrader: (0)
Rep Power: 0
mazda3415 is an unknown quantity at this point
Thanks: 0
Thanked 0 Times in 0 Posts
Groans: 0
Groaned at 0 Times in 0 Posts
Not Ranked  0 score
Default

Thanks for the info. Thinking about just getting an aftermarket seat for the drivers side. CR1 hopefully before they discontinue it.
mazda3415 is offline   Reply With Quote
 Old 11-06-2018, 03:11 PM   #12
Azn

Azn's Avatar

Join Date: Aug 2018
Posts: 4   (View Stats)
iTrader: (0)
Rep Power: 0
Azn is an unknown quantity at this point
Thanks: 2
Thanked 0 Times in 0 Posts
Groans: 0
Groaned at 0 Times in 0 Posts
Not Ranked  0 score
Default

This is great info thanks its helped me big time. By chance would u know if rx8 r3 seats bolt right up and if the connectors are the same?
Azn is offline   Reply With Quote
 Old 12-14-2018, 10:00 PM   #13

afronese1's Avatar

Join Date: Nov 2013
Location: Germantown, MD
Posts: 73   (View Stats)
iTrader: (0)
Rep Power: 0
afronese1 has a brilliant futureafronese1 has a brilliant futureafronese1 has a brilliant futureafronese1 has a brilliant futureafronese1 has a brilliant futureafronese1 has a brilliant futureafronese1 has a brilliant futureafronese1 has a brilliant futureafronese1 has a brilliant futureafronese1 has a brilliant futureafronese1 has a brilliant future
Thanks: 15
Thanked 36 Times in 16 Posts
Groans: 0
Groaned at 4 Times in 4 Posts
Not Ranked  0 score
Default

Great thread. Just got some Recaro Sportster for MS6 and can't wait to install. @davychronic you got any resistors left to mail me?
__________________
MS6/SP63 Stage 1 build/APv3/BNR S4 v2/hpfp internals/JBR full 3" intake/ATP catted dp/Magnaflow cbe/GFB bov/Damond OCC/Damond egr delete/Treadstone TR1035 FMIC kit/CPE rear diff mount/CPE safe seals/Damond rmm/H&R co/18x9 conti dws 235-40/Stoptech bbk/morimoto xb led fogs/Osram Xenarc d2s 6000K bulb/osram led parking light/Led Tails/Purple Drank Tuned
afronese1 is offline   Reply With Quote
 Old 03-16-2019, 03:36 AM   #14

davychronic's Avatar

Join Date: Feb 2015
Location: Palmer, Iowa
Posts: 1,155   (View Stats)
iTrader: (0)
Rep Power: 0
davychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the worlddavychronic is the leader of the world
Thanks: 152
Thanked 320 Times in 184 Posts
Groans: 0
Groaned at 1 Time in 1 Post
(Thread Starter)
Not Ranked  0 score
Default

Originally Posted by afronese1 View Post
Great thread. Just got some Recaro Sportster for MS6 and can't wait to install. @davychronic you got any resistors left to mail me?


If i can find them, no problem. Right now im on vacation in Colorado but when i get back in a week ill look for them. Sorry to get back so late, i havent been on the forum much lately.
__________________
06 MS6 GT Titanium Gray II Metallic
davychronic is offline   Reply With Quote
