Default How-To: Painless 3 BAR MAP Sensor upgrade

Your MAP sensor is what the ECU uses to read boost pressure. The stock Manifold Absolute Pressure sensor (MAP) is a 2.5 BAR unit, which tops out around 23-24psi, and looses accuracy around 22-23psi. If you want to accurately see pressures in that range or over, regardless of BT or K04, it's a wise idea to upgrade to at least a 3 BAR sensor. This is important even if you want to run boost pressures around 19-20psi, since the throttle cut and fuel cut settings will be at or beyond the point in the stock sensor range where things get fuzzy, so they may not work consistently, work as expected, or even work at all.

In the past this meant trying to find an overpriced sensor,usually in the range of $90-$125, and then having to cut the OEM plug off and solder the wires for the correct plug. There was a premium price since the MAP used by Mazda not only reads boost pressure, but has a built in Temp sensor, which even now, years later, is a nice touch, and fairly unusual in the USA.

Frankly, it was both expensive & a PITA, and that kept many people from making a very intelligent upgrade.

NO MORE-

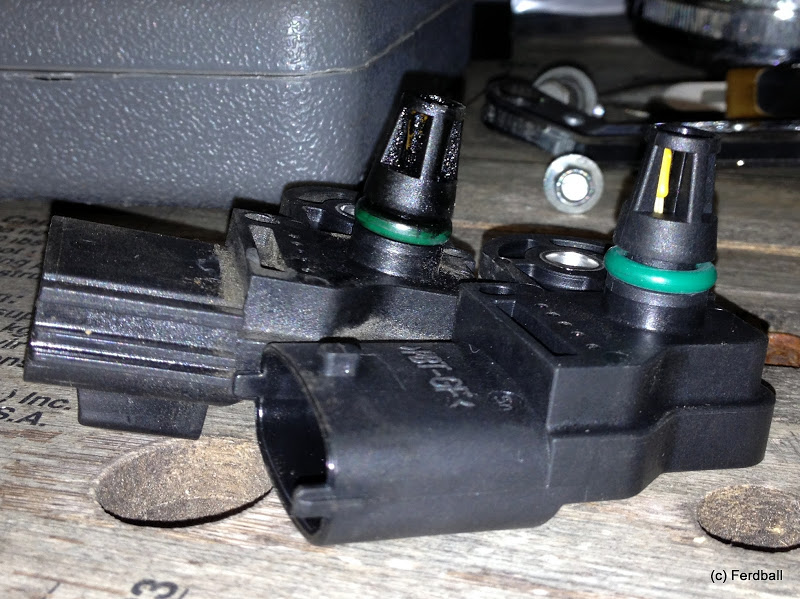

3 BAR MAP + PNP Harness
no soldering, plug n play, completely reversible to stock, and can be re-sold later as a kit if you stock out.
Under $100 for everything!

Ballenger Motorsports
Bosch 3 BAR MAP with Temp - $29.99
their PN SNSR-03085
Bosch # 0 281 002 845
Home » Shop » Sensors » Pressure Sensors » Bosch 3 Bar TMap Map Sensor with IAT


Plug-n-Play Mazdaspeed MAP Harness - $60 shipped
The OEM Mazda MAP sensor uses a proprietary connector. This harness will convert that connector into a more standard Bosch connector for use with a wider range of MAP sensors.
Mazdaspeed MAP Harness - Bitwise Motorsports


Corrections to the tune must be made!
For ATR (not sure if VT is same terminology)
If you run the HT, you're out of luck...


-> Bring the laptop to your car, fire up ATR and connect it through your AP to the ECU. Through the View menu, set Dashboard so you can view Boost. Dashboard gauges can be set through Options>Gauge List. With the Key On & Engine Off (KOEO) note what it reads for boost. Mine read -0.16. on the stock MAP sensor. You're going to want to end up with your KOEO boost as close to 0 as you can get.

For the 845 MAP sensor, you need to change three sets of MAP Scaler tables, found in the Sensor Cal folder. These are all those other tables in the same place as where you make the MAF Cal changes.

Three sets of tables, EM, Log & OBD, make the same changes in all three set, 9 individual tables.



=========================
UPDATE: Much of the remainder of this post is dedicated to finding the best values to enter in the Offset table. While this manual process still works as well as ever there is also a new set of values which have been in use for months now and have proven to be consistent & accurate. Later in this thread @rfinkle2; shares the math he used to define these numbers, and they've worked well across the country. You can feel free to just use these and know you're probably going to be more accurate than the original values were with the stock MAP sensor...

Scalar A - 296
Scalar B - 0.22
Offset - 5.444

Thanks Rob! Working magic like always!
=========================

-=> The original method:
Scalar A - 65.78
Scalar B - 1
Offset - will end up somewhere between 8.35 to 5.44

The Offset is the one that you need to change to find which value gets you closest to 0. After testing the three most common, I ended up using 6.00. Those three common used reference values are 5.44, 6.50 & 8.35.

Below are the values I found.
oem: -0.16
5.44: +0.06
6.50: -0.08
8.35: -0.37
6.00: -0.01 <--- Where I ended up after testing the common values

Here's an example of the dashboard boost gauge when I had the 5.44 scaler loaded-
*remember, key on, engine off*


These settings are also discussed in the ATR Help File. You've read the help file, right? (stern look.....)


So, start by getting the stock KOEO Boost reading so you have a baseline, then go ahead & swap the map sensor. Next load a map with updated scaler & offset values and check the KOEO Boost. Since it's doubtful you'll be close to 0 with this first revision change just the three offset tables to another of the three baseline values, flash the map, check the KOEO Boost again.

Repeat till you determine what offset gets you closest to 0. The offset value needed seems to be slightly different from car to car. It only takes a few moments to make the offset changes & flash the map, so go ahead & try all three common values to get a feel for how they change the KOEO boost reading. You want a offset value that gets you close to 0.

The three common used reference offset values again: 5.44, 6.50 & 8.35, and you may well end up using an offset value of your own like I did. I used a offset value of 6.00 to get a KOEO Boost reading of -0.01.

All told, it took me ~30-40 minutes from on ramps (to save my back) to off ramps & test drive, including testing the four different versions of offset listed above, to complete this project.

Once your set you'll have a accurate boost readings up to about 30psi. If you're feeling particularly froggy, they make a 3.5 BAR, even a 4 BAR....
__________________
Was a Mazdaspeed6 GT #3476 TiGray slicktop
Now in a BMW 135i - double the turbos, double the fun!
E82.N54 2009 / BSM / A/T / Drop-in / PR CP / Berk Street / MHD / xHP
340hp / 371tq

Last edited by TiGraySpeed6; 10-31-2014 at 04:39 PM.
TiGraySpeed6 is offline   Reply With Quote
The Following 105 Users Say Thank You to TiGraySpeed6 For This Useful Post:
2.0t03speed (12-28-2013), 802MS3 (10-30-2012), Agent_Orange (06-20-2013), Alpha (06-02-2013), altaprecision (05-02-2014), aromig (12-23-2014), atvfreek (10-30-2012), Axel907 (03-30-2013), AZSPEED3 (11-01-2012), big angry bird (04-10-2013), BlueStreak (11-01-2012), boostdmazda3 (04-27-2013), Boosted Beluga (06-02-2013), Boost_creep (10-30-2012), brandonlee (02-19-2014), breakfstincluded (07-10-2013), bstover17 (12-27-2013), Castillo817 (02-15-2016), ccspeed3 (10-30-2012), Cevaes_64 (06-05-2013), Code Monkey (10-30-2012), Dahouse702 (07-14-2013), dantes5823 (10-31-2012), DaUberSchwebel (08-14-2014), DISIindahead (11-01-2012), dot584 (07-28-2013), Dr. Speed (11-19-2012), dshrek (11-01-2012), DuBz (08-20-2013), EdgeAutosport.com (02-14-2014), El_Diablo (07-14-2013), Eric28243 (11-01-2012), ericrapp0507@gmail.com (04-16-2016), Fonsi (01-03-2017), forgedzoomzoom (02-03-2013), Franky-5-Fingaz (04-21-2017), FSRRM (05-10-2016), Funguy7 (02-01-2016), GunGuru727 (10-30-2012), Haltech (10-30-2012), helmetface (11-01-2012), Hush (05-24-2014), IamJamen (05-18-2013), IMASA (10-30-2012), ItsNox (05-28-2014), Javi (04-27-2013), JeffroMS3 (03-16-2014), Jh8909 (10-30-2012), JTMS3 (06-15-2013), Keko (10-30-2012), Kellerspeed3 (03-16-2014), Kfunk (04-27-2013), LatinKraze (01-10-2013), littleloogy (07-18-2015), Lost hawaiian (11-01-2012), MattJackson86 (01-19-2013), Mazda2012 (12-14-2015), MD1032 (05-11-2015), meelo88 (04-16-2013), meicalnissyen (01-01-2017), MicaBlackMS6 (11-01-2012), Micha (02-17-2013), mike w (02-09-2013), Mike@Stratified (02-15-2014), mituc (11-01-2012), moomooz12 (04-22-2013), MS3-a(sore)ASS-rex (11-01-2012), ms3blackmica (03-13-2013), ms6mil (07-15-2013), nesiospeed (04-06-2015), Outlaw4shrt (04-08-2013), ozziewog (08-03-2013), pbonn617 (02-22-2013), phate (10-30-2012), PhorB13 (04-18-2015), Playaj (12-21-2013), Pointless (10-30-2012), Poohster (11-02-2012), Randallpw (09-10-2015), Rich990 (07-05-2013), SamiChicago (08-04-2014), shadesofgray19 (08-02-2013), Sid3wayS (10-30-2012), sleeperstang1994 (02-15-2014), Sleepin6 (01-06-2016), SLOWHATCH (10-30-2012), Snappy (11-22-2015), spals (06-27-2014), SpeedRebirth (10-31-2012), sporkbomb (03-18-2015), The Nut (09-16-2013), thricestrat (09-16-2013), Tomas (07-18-2013), Tommyspeed3 (05-29-2017), torquemaniac (11-04-2013), trf5000 (11-01-2012), txmedic512 (08-22-2014), udntknw (08-30-2015), UnknownSuperhero (10-30-2012), UrbanGiftShop (11-01-2012), Vader (10-30-2012), Vansquish (04-10-2019), WetzMS3 (07-24-2014), Z32_MS3 (06-21-2014), Zdraveca (10-30-2012)
 Old 11-01-2012, 07:30 AM   #2
Banned

UrbanGiftShop's Avatar

Join Date: May 2011
Location: Louisville, KY
Posts: 15   (View Stats)
iTrader: (0)
Rep Power: 0
UrbanGiftShop is a glorious beacon of lightUrbanGiftShop is a glorious beacon of lightUrbanGiftShop is a glorious beacon of lightUrbanGiftShop is a glorious beacon of lightUrbanGiftShop is a glorious beacon of lightUrbanGiftShop is a glorious beacon of light
Thanks: 23
Thanked 12 Times in 6 Posts
Groans: 0
Groaned at 15 Times in 3 Posts
Not Ranked  0 score
Default

I need to order one! I can't PM anyone yet =X Please PM me?
UrbanGiftShop is offline   Reply With Quote
 Old 11-01-2012, 07:59 AM   #3

TiGraySpeed6's Avatar

Join Date: Jun 2009
Location: Tally, FL
Posts: 3,981   (View Stats)
iTrader: (1)
Rep Power: 3058
TiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the world
Thanks: 4,683
Thanked 5,754 Times in 2,278 Posts
Groans: 2
Groaned at 3 Times in 3 Posts
(Thread Starter)
Not Ranked  0 score
Default

Who- Me??

I'm not selling anything- There are links up there for both the plug n play harness adapter and for a great deal on the MAP sensor that will take you right to the vendor - easy peasy
__________________
Was a Mazdaspeed6 GT #3476 TiGray slicktop
Now in a BMW 135i - double the turbos, double the fun!
E82.N54 2009 / BSM / A/T / Drop-in / PR CP / Berk Street / MHD / xHP
340hp / 371tq
TiGraySpeed6 is offline   Reply With Quote
The Following 2 Users Say Thank You to TiGraySpeed6 For This Useful Post:
stonecold0469 (01-07-2015), UrbanGiftShop (11-01-2012)
 Old 11-01-2012, 08:02 AM   #4

DISIindahead's Avatar

Join Date: May 2010
Location: Colorado Springs, CO 80915
Posts: 911   (View Stats)
iTrader: (3)
Rep Power: 0
DISIindahead is the leader of the worldDISIindahead is the leader of the worldDISIindahead is the leader of the worldDISIindahead is the leader of the worldDISIindahead is the leader of the worldDISIindahead is the leader of the worldDISIindahead is the leader of the worldDISIindahead is the leader of the worldDISIindahead is the leader of the worldDISIindahead is the leader of the worldDISIindahead is the leader of the world
Thanks: 921
Thanked 1,304 Times in 427 Posts
Groans: 14
Groaned at 8 Times in 6 Posts
Not Ranked  0 score
Default

Glad I saw this. Now I understand a little more about what's available. Great write up. @sassyspeed3 installed my 3 bar last night and thanks to @rfinkle2 for continuing to tune me. I need to catch up with the wife. No way will I let my own wife make more power than me lol

Sent from my Motorola DynaTAC 8000X
__________________
2010 Mazdaspeed 3 - Built Motor - GTX3071: SOLD

2012 Jeep Wrangler Unlimited Sport: Current DD
DISIindahead is offline   Reply With Quote
The Following 2 Users Say Thank You to DISIindahead For This Useful Post:
ms3blackmica (11-02-2012), rfinkle2 (11-01-2012)
 Old 11-01-2012, 08:30 AM   #5

mituc's Avatar

Join Date: Mar 2009
Location: Iasi/Romania
Posts: 3,528   (View Stats)
iTrader: (0)
Rep Power: 1237
mituc is the leader of the worldmituc is the leader of the worldmituc is the leader of the worldmituc is the leader of the worldmituc is the leader of the worldmituc is the leader of the worldmituc is the leader of the worldmituc is the leader of the worldmituc is the leader of the worldmituc is the leader of the worldmituc is the leader of the world
Thanks: 1,288
Thanked 2,138 Times in 1,236 Posts
Groans: 111
Groaned at 17 Times in 14 Posts
Not Ranked  0 score
Default

For those who are tuning with VersaTuner this is the section that you need to look at:



The MAP Scale Additive corresponds to the Offset value above, MAP Scale Base Multiplier is the Scalar A and the MAP Scale Second Multiplier is the Scalar B.
TiGraySpeed6 likes this.
__________________
2008 Cosmic Blue Mazda 3MPS
Bilstein B12 + CS Camber plates + Eibach camber arms, SSR Type-F, Michelin PS4 225/40/R18, Cobb RMM, StopTech Street Pads + Stoptech Slotted disks, SouthBend Enduro Stage3 clutch, genpu TMM + CS Insert, TheSpeedLine 2X Rear Cross Floor and Rear Middle Lower Strut bars, Tanabe 4 Point Under Brace, Whiteline Bumpsteeer corection kit
JBR Tru-3" + CS CAI Box, CP-e TMIC, Cobb XLE, NGK LTR7IX, UR v3 catted DP and res&catted TP, Cobb CatBack, GS EBCS, Autotech internals, GTX3071r gen2, CS 3.5BAR, Guardian Angel, CoolingMist WMI, VCTS Delete, stock ported IM, CorkSport cam shafts
Mahle 88mm 4032 9.6:1 pistons, Manley rods, CA625+ head studs, King rod&main bearings, CS seals, DCR VVT, Koyorad radiator.
StratiVersaTuned FTW to 28PSI, self-tuned to 32PSI

2008 Icy Blue Mazda CX7 6 Speed Manual
SU TMIC, Autotech HPFP internals, Cobb XLE, Cobb EBCS, CorkSport 3.5BAR MAP
GTX2867R gen2, stock spark plugs, stock cats and stock exhaust FTW, JBR Tru-3" Silicone intake
TheSpeedLine Top and Lower Strut bars
self-Versatuned to 22PSI
mituc is offline   Reply With Quote
The Following 10 Users Say Thank You to mituc For This Useful Post:
keridil (11-05-2012), manselainen (02-15-2014), meicalnissyen (12-19-2016), ms3blackmica (06-12-2013), Project_dog (06-26-2016), rfinkle2 (11-01-2012), SarcasticOne (01-08-2013), SpeedRebirth (03-09-2013), TiGraySpeed6 (11-01-2012), UrbanGiftShop (11-01-2012)
 Old 11-01-2012, 08:46 AM   #6

pzr2874's Avatar

Join Date: Dec 2009
Location: San Antonio, TX
Posts: 6,778   (View Stats)
iTrader: (3)
Rep Power: 5050
pzr2874 is the leader of the worldpzr2874 is the leader of the worldpzr2874 is the leader of the worldpzr2874 is the leader of the worldpzr2874 is the leader of the worldpzr2874 is the leader of the worldpzr2874 is the leader of the worldpzr2874 is the leader of the worldpzr2874 is the leader of the worldpzr2874 is the leader of the worldpzr2874 is the leader of the world
Thanks: 28,143
Thanked 9,742 Times in 1,846 Posts
Groans: 146
Groaned at 151 Times in 111 Posts
Not Ranked  0 score
Default

@Pseud0logik @dshrek
pzr2874 is offline   Reply With Quote
The Following User Says Thank You to pzr2874 For This Useful Post:
dshrek (11-01-2012)
 Old 04-27-2013, 01:18 PM   #7

guerrero1977's Avatar

Join Date: Apr 2011
Location: Nahant, MA
Posts: 32   (View Stats)
iTrader: (0)
Rep Power: 0
guerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant future
Thanks: 0
Thanked 30 Times in 11 Posts
Groans: 0
Groaned at 0 Times in 0 Posts
Not Ranked  0 score
Default Awesome!

Thanks a lot for this write up, I just came from my tuner's shop on a mission to find an upgrade to the stock MAP sensor, as I'm having issues running boost levels over 21psi, and I didn't want to splice wires or anything like that. You have saved me time and money!
guerrero1977 is offline   Reply With Quote
The Following User Says Thank You to guerrero1977 For This Useful Post:
TiGraySpeed6 (04-27-2013)
 Old 04-27-2013, 03:00 PM   #8

BlckMs3's Avatar

Join Date: Dec 2011
Location: Virginia
Posts: 769   (View Stats)
iTrader: (0)
Rep Power: 0
BlckMs3 is the leader of the worldBlckMs3 is the leader of the worldBlckMs3 is the leader of the worldBlckMs3 is the leader of the worldBlckMs3 is the leader of the worldBlckMs3 is the leader of the worldBlckMs3 is the leader of the worldBlckMs3 is the leader of the worldBlckMs3 is the leader of the worldBlckMs3 is the leader of the worldBlckMs3 is the leader of the world
Thanks: 715
Thanked 569 Times in 268 Posts
Groans: 30
Groaned at 4 Times in 2 Posts
Not Ranked  0 score
Default

Originally Posted by guerrero1977 View Post
Thanks a lot for this write up, I just came from my tuner's shop on a mission to find an upgrade to the stock MAP sensor, as I'm having issues running boost levels over 21psi, and I didn't want to splice wires or anything like that. You have saved me time and money!
way to revive an old ass thread
__________________
Stance will make her dance, but boost will make her sploosh

[12:57 PM] Enki: kim should sell her used tampons to msf as fresh teabags
2007 Mazdaspeed3 SOLD
2014 Mustang GT
BlckMs3 is offline   Reply With Quote
 Old 04-27-2013, 05:22 PM   #9

TiGraySpeed6's Avatar

Join Date: Jun 2009
Location: Tally, FL
Posts: 3,981   (View Stats)
iTrader: (1)
Rep Power: 3058
TiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the world
Thanks: 4,683
Thanked 5,754 Times in 2,278 Posts
Groans: 2
Groaned at 3 Times in 3 Posts
(Thread Starter)
Not Ranked  0 score
Default

relevant now as the day it was drafted.

Glad it was of assistance!
__________________
Was a Mazdaspeed6 GT #3476 TiGray slicktop
Now in a BMW 135i - double the turbos, double the fun!
E82.N54 2009 / BSM / A/T / Drop-in / PR CP / Berk Street / MHD / xHP
340hp / 371tq
TiGraySpeed6 is offline   Reply With Quote
The Following 6 Users Say Thank You to TiGraySpeed6 For This Useful Post:
aldekei (04-27-2013), Dolfius (05-28-2017), JTMS3 (02-14-2014), Kanejack (01-30-2015), KevMS6 (04-28-2013), The Nut (09-16-2013)
 Old 05-03-2013, 09:47 AM   #10

guerrero1977's Avatar

Join Date: Apr 2011
Location: Nahant, MA
Posts: 32   (View Stats)
iTrader: (0)
Rep Power: 0
guerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant futureguerrero1977 has a brilliant future
Thanks: 0
Thanked 30 Times in 11 Posts
Groans: 0
Groaned at 0 Times in 0 Posts
Not Ranked  0 score
Default

Originally Posted by TiGraySpeed6 View Post
relevant now as the day it was drafted.

Glad it was of assistance!
You're damn right about that! My stock sensor was no good for the hp I'm hitting right now, around 450hp. Now I should be able to get it tuned properly and hit 500hp.
guerrero1977 is offline   Reply With Quote
 Old 06-02-2013, 12:49 PM   #11

Boosted Beluga's Avatar

Join Date: Jun 2009
Location: Riverside, CA
Posts: 4,859   (View Stats)
iTrader: (0)
Rep Power: 0
Boosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the world
Thanks: 11,560
Thanked 3,408 Times in 1,844 Posts
Groans: 50
Groaned at 20 Times in 18 Posts
Not Ranked  0 score
Default

Thank you. I'm getting a 3.5 BAR soon for the gtx3071. I plain on running around 30psi. as fuel will permit anyway. Tuning this shouldn't be hard at all.
Jakeypoo likes this.
__________________
08 Mazdaspeed 3

Fucking FREEK TUNED and shit
Boosted Beluga is offline   Reply With Quote
The Following User Says Thank You to Boosted Beluga For This Useful Post:
TiGraySpeed6 (06-02-2013)
 Old 06-02-2013, 02:20 PM   #12

TiGraySpeed6's Avatar

Join Date: Jun 2009
Location: Tally, FL
Posts: 3,981   (View Stats)
iTrader: (1)
Rep Power: 3058
TiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the world
Thanks: 4,683
Thanked 5,754 Times in 2,278 Posts
Groans: 2
Groaned at 3 Times in 3 Posts
(Thread Starter)
Not Ranked  0 score
Default

You'll want different settings for a 3.5 BAR-

These are from the ATR Help File:

Bosch #: 0 281 002 456
Scaler A: 75
Scaler B: 1
Offset: -12.5 as a starting point (that's negative 12.5)


note that you will most likely still need to tinker with the offset to get your car as close to KOEO boost pressure of zero as possible, and be sure to use the Dashboard function- the AP is nowhere near as accurate
Boosted Beluga likes this.
__________________
Was a Mazdaspeed6 GT #3476 TiGray slicktop
Now in a BMW 135i - double the turbos, double the fun!
E82.N54 2009 / BSM / A/T / Drop-in / PR CP / Berk Street / MHD / xHP
340hp / 371tq
TiGraySpeed6 is offline   Reply With Quote
The Following 2 Users Say Thank You to TiGraySpeed6 For This Useful Post:
Boosted Beluga (06-02-2013), torquemaniac (05-10-2014)
 Old 06-02-2013, 02:29 PM   #13

Boosted Beluga's Avatar

Join Date: Jun 2009
Location: Riverside, CA
Posts: 4,859   (View Stats)
iTrader: (0)
Rep Power: 0
Boosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the worldBoosted Beluga is the leader of the world
Thanks: 11,560
Thanked 3,408 Times in 1,844 Posts
Groans: 50
Groaned at 20 Times in 18 Posts
Not Ranked  0 score
Default

Thank you sir.
__________________
08 Mazdaspeed 3

Fucking FREEK TUNED and shit
Boosted Beluga is offline   Reply With Quote
 Old 06-15-2013, 10:25 AM   #14

stonecold0469's Avatar

Join Date: Mar 2013
Posts: 34   (View Stats)
iTrader: (0)
Rep Power: 0
stonecold0469 will become famous soon enough
Thanks: 3
Thanked 2 Times in 2 Posts
Groans: 0
Groaned at 1 Time in 1 Post
Not Ranked  0 score
Default

Can i use this sensor with the plug n play harness?
Does this unit has the temp. Sensor included?

Bosch 0 281 002 437
stonecold0469 is offline   Reply With Quote
 Old 06-15-2013, 10:45 AM   #15

86AmishMs3's Avatar

Join Date: Feb 2009
Location: Chambersburg, PA
Posts: 3,639   (View Stats)
iTrader: (5)
Rep Power: 0
86AmishMs3 is the leader of the world86AmishMs3 is the leader of the world86AmishMs3 is the leader of the world86AmishMs3 is the leader of the world86AmishMs3 is the leader of the world86AmishMs3 is the leader of the world86AmishMs3 is the leader of the world86AmishMs3 is the leader of the world86AmishMs3 is the leader of the world86AmishMs3 is the leader of the world86AmishMs3 is the leader of the world
Thanks: 7,921
Thanked 4,621 Times in 1,808 Posts
Groans: 338
Groaned at 93 Times in 48 Posts
Not Ranked  0 score
Default

Originally Posted by stonecold0469 View Post
Can i use this sensor with the plug n play harness?
Does this unit has the temp. Sensor included?

Bosch 0 281 002 437
I believe so...iirc correctly there are 2 3bar sensors out there...and the 437 will require a different calibration.
__________________
Current: N54 135i
DCI, DP's, Exhaust, FMIC
12.3@122


2009 Mazdaspeed 3:
GT3076 - Corkey tuned
Treadstone 3" MAF, HTP 3" turbo inlet, MSCBE, Turbo XS FMIC, CNT catted DP, CP-E HPFP,
Tial QR BPV, SURE TIG's, ITV24's,
CP-E Stage 2 RMM, Medefail Tranny mount, 18x8 245/40's
390whp/400wtq
12.8@114

Sold
86AmishMs3 is offline   Reply With Quote
 Old 06-15-2013, 10:48 AM   #16

stonecold0469's Avatar

Join Date: Mar 2013
Posts: 34   (View Stats)
iTrader: (0)
Rep Power: 0
stonecold0469 will become famous soon enough
Thanks: 3
Thanked 2 Times in 2 Posts
Groans: 0
Groaned at 1 Time in 1 Post
Not Ranked  0 score
Default

Will the pigtail fit this one?
I will try this soon. I want 25 psi on my precision!!!
stonecold0469 is offline   Reply With Quote
 Old 07-02-2013, 06:00 AM   #17

Cevaes_64's Avatar

Join Date: Oct 2012
Location: TAMPA
Posts: 1,066   (View Stats)
iTrader: (3)
Rep Power: 0
Cevaes_64 is the leader of the worldCevaes_64 is the leader of the worldCevaes_64 is the leader of the worldCevaes_64 is the leader of the worldCevaes_64 is the leader of the worldCevaes_64 is the leader of the worldCevaes_64 is the leader of the worldCevaes_64 is the leader of the worldCevaes_64 is the leader of the worldCevaes_64 is the leader of the worldCevaes_64 is the leader of the world
Thanks: 962
Thanked 735 Times in 335 Posts
Groans: 8
Groaned at 18 Times in 13 Posts
Not Ranked  0 score
Default

Just ordered mine... =) Moar Booost...
__________________
2013 VRM MS3\ BNR S3v2\ 4GL E85 TUNED\
Cevaes_64 is offline   Reply With Quote
 Old 07-14-2013, 10:21 PM   #18
Iron Man

ABQ Speed6's Avatar

Join Date: Apr 2011
Location: Albuquerque, NM
Posts: 1,363   (View Stats)
iTrader: (0)
Rep Power: 726
ABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the world
Thanks: 1,014
Thanked 1,209 Times in 659 Posts
Groans: 2
Groaned at 3 Times in 2 Posts
Not Ranked  0 score
Default

Thanks for the write up. Just bought the 3 BAR MAP sensor to finish my BT build. Will be installing tomorrow
__________________
Precision 6266 Top mount
Southbend Stage 3 Race clutch
Water to Air Intercooler
Methanol Injection-50/50 e85 mix
Hulk Smash
ABQ Speed6 is offline   Reply With Quote
 Old 07-27-2013, 09:51 PM   #19

NCspecV81's Avatar

Join Date: Apr 2013
Location: Wilkesboro, North Carolina
Posts: 2,867   (View Stats)
iTrader: (4)
Rep Power: 0
NCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the world
Thanks: 1,221
Thanked 2,529 Times in 1,114 Posts
Groans: 16
Groaned at 32 Times in 17 Posts
Not Ranked  0 score
Default

anyone know if you can use more than 5.44, 6,0, 6.5, and 8.35? Like for example can I set the offset for 6.65?
NCspecV81 is offline   Reply With Quote
 Old 07-28-2013, 10:56 AM   #20

TiGraySpeed6's Avatar

Join Date: Jun 2009
Location: Tally, FL
Posts: 3,981   (View Stats)
iTrader: (1)
Rep Power: 3058
TiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the world
Thanks: 4,683
Thanked 5,754 Times in 2,278 Posts
Groans: 2
Groaned at 3 Times in 3 Posts
(Thread Starter)
Not Ranked  0 score
Default

Yes, you can, and you're encouraged to find the value that brings you closest to KOEO 0.00 boost pressure.

nothing wrong at all with using the offset of 6.65
__________________
Was a Mazdaspeed6 GT #3476 TiGray slicktop
Now in a BMW 135i - double the turbos, double the fun!
E82.N54 2009 / BSM / A/T / Drop-in / PR CP / Berk Street / MHD / xHP
340hp / 371tq
TiGraySpeed6 is offline   Reply With Quote
 Old 08-02-2013, 12:42 PM   #21
Iron Man

ABQ Speed6's Avatar

Join Date: Apr 2011
Location: Albuquerque, NM
Posts: 1,363   (View Stats)
iTrader: (0)
Rep Power: 726
ABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the worldABQ Speed6 is the leader of the world
Thanks: 1,014
Thanked 1,209 Times in 659 Posts
Groans: 2
Groaned at 3 Times in 2 Posts
Not Ranked  0 score
Default

Thanks again for the write up. Very helpful!! I ended up with a 5.7 offset to get a -0.03.
__________________
Precision 6266 Top mount
Southbend Stage 3 Race clutch
Water to Air Intercooler
Methanol Injection-50/50 e85 mix
Hulk Smash
ABQ Speed6 is offline   Reply With Quote
 Old 08-02-2013, 02:30 PM   #22

Ferdball's Avatar

Join Date: Apr 2008
Location: San Diego, CA
Posts: 1,340   (View Stats)
iTrader: (2)
Rep Power: 493
Ferdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the world
Thanks: 666
Thanked 671 Times in 338 Posts
Groans: 11
Groaned at 11 Times in 9 Posts
Not Ranked  0 score
Default

Going to try this. Thanks for the links.
Ferdball is offline   Reply With Quote
 Old 08-09-2013, 11:12 PM   #23

Ferdball's Avatar

Join Date: Apr 2008
Location: San Diego, CA
Posts: 1,340   (View Stats)
iTrader: (2)
Rep Power: 493
Ferdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the world
Thanks: 666
Thanked 671 Times in 338 Posts
Groans: 11
Groaned at 11 Times in 9 Posts
Not Ranked  0 score
Default



MAP swap = EGR delete?
Ferdball is offline   Reply With Quote
 Old 08-09-2013, 11:44 PM   #24

Micha's Avatar

Join Date: Jun 2011
Location: Beach Park Illinois
Posts: 3,436   (View Stats)
iTrader: (2)
Rep Power: 2610
Micha is the leader of the worldMicha is the leader of the worldMicha is the leader of the worldMicha is the leader of the worldMicha is the leader of the worldMicha is the leader of the worldMicha is the leader of the worldMicha is the leader of the worldMicha is the leader of the worldMicha is the leader of the worldMicha is the leader of the world
Thanks: 46,278
Thanked 4,947 Times in 1,777 Posts
Groans: 261
Groaned at 73 Times in 60 Posts
Not Ranked  0 score
Default

That looks nice ferd.
Micha is offline   Reply With Quote
 Old 08-10-2013, 12:08 AM   #25

Ferdball's Avatar

Join Date: Apr 2008
Location: San Diego, CA
Posts: 1,340   (View Stats)
iTrader: (2)
Rep Power: 493
Ferdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the worldFerdball is the leader of the world
Thanks: 666
Thanked 671 Times in 338 Posts
Groans: 11
Groaned at 11 Times in 9 Posts
Not Ranked  0 score
Default

I really need to find a place where I can run a bottle if seafoam up the brake line. I don't have the nerve to do it at my house.
Ferdball is offline   Reply With Quote
 Old 08-10-2013, 08:59 AM   #26

El_Diablo's Avatar

Join Date: Dec 2011
Location: Wooster Oh, 44691
Posts: 2,770   (View Stats)
iTrader: (1)
Rep Power: 0
El_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the world
Thanks: 17,721
Thanked 4,597 Times in 1,397 Posts
Groans: 769
Groaned at 46 Times in 29 Posts
Not Ranked  0 score
Default

Originally Posted by Ferdball View Post
I really need to find a place where I can run a bottle if seafoam up the brake line. I don't have the nerve to do it at my house.
Find a random parking lot in the next town over....
tastysi2004 likes this.
__________________
2011 Mazdaspeed 3- AccessPORT V2, Autotech HPFP Internals, 3 Bar MAP Sensor, 3" Catless Downpipe, CPE Stage 2 RMM, CPE TMM, Custom Saikou Michi OCC, CXR FMIC, Devils Own DVC-30, Forge V2 BPV, 3.5" HTP Intake, JBR TIG's, MME Shifter Bushings, NGK LTR7IX-11's, PNP Intake, SPEEDPERF6MANC3 Valve Cover Breather

2004 Mazdaspeed Miata #3142- Stock, but not for long.



Equal rights for all, special privileges for none. ~ Thomas Jefferson
El_Diablo is offline   Reply With Quote
The Following User Says Thank You to El_Diablo For This Useful Post:
Mauro_Penguin (08-13-2013)
 Old 08-20-2013, 07:51 PM   #27

NCspecV81's Avatar

Join Date: Apr 2013
Location: Wilkesboro, North Carolina
Posts: 2,867   (View Stats)
iTrader: (4)
Rep Power: 0
NCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the world
Thanks: 1,221
Thanked 2,529 Times in 1,114 Posts
Groans: 16
Groaned at 32 Times in 17 Posts
Not Ranked  0 score
Default

for some reason my map voltage never goes above 1.01v. Last log i done it ranged from .11v to 1.01v. I have to have something off? I used:

A - 65.78
B - 1
Offset - 6.6

6.6 will read -.06 KOEO.
NCspecV81 is offline   Reply With Quote
 Old 08-21-2013, 08:47 AM   #28

TiGraySpeed6's Avatar

Join Date: Jun 2009
Location: Tally, FL
Posts: 3,981   (View Stats)
iTrader: (1)
Rep Power: 3058
TiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the world
Thanks: 4,683
Thanked 5,754 Times in 2,278 Posts
Groans: 2
Groaned at 3 Times in 3 Posts
(Thread Starter)
Not Ranked  0 score
Default

Does the boost psi read accurately? That's the key question, and can be answered by comparing logs from just before and just after your install and configuration of the MAP sensor.

As for MAP Voltage- that's not something the AP logs.
Are you thinking of MAF Voltage?

Do you have a log of this behavior you could post?
__________________
Was a Mazdaspeed6 GT #3476 TiGray slicktop
Now in a BMW 135i - double the turbos, double the fun!
E82.N54 2009 / BSM / A/T / Drop-in / PR CP / Berk Street / MHD / xHP
340hp / 371tq
TiGraySpeed6 is offline   Reply With Quote
 Old 08-21-2013, 02:31 PM   #29

NCspecV81's Avatar

Join Date: Apr 2013
Location: Wilkesboro, North Carolina
Posts: 2,867   (View Stats)
iTrader: (4)
Rep Power: 0
NCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the worldNCspecV81 is the leader of the world
Thanks: 1,221
Thanked 2,529 Times in 1,114 Posts
Groans: 16
Groaned at 32 Times in 17 Posts
Not Ranked  0 score
Default

my AP monitors MAP voltage?
Attached Files
File Type: csv datalog38.csv (10.8 KB, 34 views)
NCspecV81 is offline   Reply With Quote
 Old 08-21-2013, 03:54 PM   #30

TiGraySpeed6's Avatar

Join Date: Jun 2009
Location: Tally, FL
Posts: 3,981   (View Stats)
iTrader: (1)
Rep Power: 3058
TiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the world
Thanks: 4,683
Thanked 5,754 Times in 2,278 Posts
Groans: 2
Groaned at 3 Times in 3 Posts
(Thread Starter)
Not Ranked  0 score
Default

Actually, the Gen2 does log MAP Volts.

It's not an item I've ever had a need to log, and therefore not part of my default items I have people log. Had to pull up a copy of the gen2 ATR and double check.

Unless you've got logs from before where it's reading higher, or your boost is reading off from what you're expecting I wouldn't worry about it.

That said, anybody with a gen2 willing to log MAP V and share what you see & what MAP sensor you're using?
__________________
Was a Mazdaspeed6 GT #3476 TiGray slicktop
Now in a BMW 135i - double the turbos, double the fun!
E82.N54 2009 / BSM / A/T / Drop-in / PR CP / Berk Street / MHD / xHP
340hp / 371tq
TiGraySpeed6 is offline   Reply With Quote
 Old 09-06-2013, 06:54 AM   #31

El_Diablo's Avatar

Join Date: Dec 2011
Location: Wooster Oh, 44691
Posts: 2,770   (View Stats)
iTrader: (1)
Rep Power: 0
El_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the worldEl_Diablo is the leader of the world
Thanks: 17,721
Thanked 4,597 Times in 1,397 Posts
Groans: 769
Groaned at 46 Times in 29 Posts
Not Ranked  0 score
Default

Does anyone happen to know if the 03085 sensor will work with the Speedperf6manc3 plug and play harness? They don't currently show the 03085 as being compatible.
__________________
2011 Mazdaspeed 3- AccessPORT V2, Autotech HPFP Internals, 3 Bar MAP Sensor, 3" Catless Downpipe, CPE Stage 2 RMM, CPE TMM, Custom Saikou Michi OCC, CXR FMIC, Devils Own DVC-30, Forge V2 BPV, 3.5" HTP Intake, JBR TIG's, MME Shifter Bushings, NGK LTR7IX-11's, PNP Intake, SPEEDPERF6MANC3 Valve Cover Breather

2004 Mazdaspeed Miata #3142- Stock, but not for long.



Equal rights for all, special privileges for none. ~ Thomas Jefferson
El_Diablo is offline   Reply With Quote
The Following User Says Thank You to El_Diablo For This Useful Post:
superskaterxes (09-06-2013)
 Old 09-06-2013, 07:00 AM   #32

TiGraySpeed6's Avatar

Join Date: Jun 2009
Location: Tally, FL
Posts: 3,981   (View Stats)
iTrader: (1)
Rep Power: 3058
TiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the world
Thanks: 4,683
Thanked 5,754 Times in 2,278 Posts
Groans: 2
Groaned at 3 Times in 3 Posts
(Thread Starter)
Not Ranked  0 score
Default

Yes, it does- order it up!

Ballenger shows their own internal part number (03085), which is the sensor commonly referred to here as the Bosch 845, and is shown on SP's page with the full number (0 281 002 845)

So no problem- have at it!
__________________
Was a Mazdaspeed6 GT #3476 TiGray slicktop
Now in a BMW 135i - double the turbos, double the fun!
E82.N54 2009 / BSM / A/T / Drop-in / PR CP / Berk Street / MHD / xHP
340hp / 371tq
TiGraySpeed6 is offline   Reply With Quote
The Following 3 Users Say Thank You to TiGraySpeed6 For This Useful Post:
El_Diablo (09-06-2013), Mauro_Penguin (09-08-2013), superskaterxes (09-06-2013)
 Old 09-16-2013, 01:20 AM   #33

The Nut's Avatar

Join Date: Apr 2012
Location: Los Angeles
Posts: 1,571   (View Stats)
iTrader: (0)
Rep Power: 426
The Nut is the leader of the worldThe Nut is the leader of the worldThe Nut is the leader of the worldThe Nut is the leader of the worldThe Nut is the leader of the worldThe Nut is the leader of the worldThe Nut is the leader of the worldThe Nut is the leader of the worldThe Nut is the leader of the worldThe Nut is the leader of the worldThe Nut is the leader of the world
Thanks: 956
Thanked 633 Times in 399 Posts
Groans: 13
Groaned at 38 Times in 20 Posts
Not Ranked  0 score
Default

So happy I just found this thread. I've been wondering how accurate my boost readings are since I started logging again for the new Corksport BPV and the fact that I'm showing spiking. Been thinking about this upgrade and thanks to OP, it seems really straight forward. Mahalo!
__________________
2012 BLACK MICA w/TECH
Go: Cobb- AP(v2)//AT- Internals//ETS- TMIC//CorkSport- True 3" Intake/Camber Plates/BPV/Boost Tubes/Recirc Tube//Denso- ITV22's//NATOR- TP//JBR- 80a Duro TMM & PMM/SSP/Counterweight/Anchors//CP-E- Stage II RMM//Tri-Point- RSB w/Monster Endlinks//GT-Spec- 4 Points Ladder Brace/Mid Chassis Brace/Front 4-Point Brace/Front & Rear Lower Tie Bar/Trunk Reinforcement Brace//Bosch- 3 Bar MAP Sensor//Technafit- SS Brake Lines//KW- v3 Coilovers//Swift- Springs (8K front/6K rear)//BC- Rear Spring Perches

Shoes: MB- Battles (Matte Gunmetal) 18X8 +43 wrapped wit Michelin PSS's 245/35/ZR18

Rice: Tint//Blacked Out Badging//CorkSport - Hoodlifts/Engine Compartment LEDs//JBR- Special Edition Cylindrical Knob
Stereo: Full Custom Mobile Audio/Video Entertainment System




91 & Corn diagnostics by:
The Nut is offline   Reply With Quote
 Old 12-21-2013, 03:36 PM   #34

Emew's Avatar

Join Date: Apr 2012
Location: Manchester, NH
Posts: 217   (View Stats)
iTrader: (0)
Rep Power: 0
Emew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond repute
Thanks: 89
Thanked 74 Times in 50 Posts
Groans: 0
Groaned at 3 Times in 2 Posts
Not Ranked  0 score
Default

Any idea if the following connector is what you need in place of the $65 piece you linked in the original post?
Bosch 4-way sealed Plug BSK Connector Pigtail for Bosch MAP Sensor

Saw it listed with the Bosch 3 bar map sensor on Edge and wasn't sure due to lack of a picture..
__________________
Flow Student
'07 Speed6 TiGrey: SURE ID300/Shift Plate+Weight/Breather Hose, Forge BPV v2, CX-7 Antenna, ProSport Boost Gauge, Block8Head's MS6 Pod, Cobb AP v3, ITV22 1SC Plugs, TWM Short Shift, Stage 2 Clutch, JBR Shifter Bushings/Shift Knob/RMM/EGR Delete, Euro LED Tails, AutoTech FP Internals, M2 DP, ETS TMIC, Techna-Fit SS Brake Lines/Clutch Line, Hawk HPS Pads, ATE 200, MD OCC VTA v2, 3-Bar MAP, AWR TMM, CP-E RDM, Whiteline RSB, RB Rear Endlinks, Moog Front Endlinks, Bilstein HD6 Shocks, Corksport Springs.
Emew is offline   Reply With Quote
 Old 12-21-2013, 04:21 PM   #35

ABolewski's Avatar

Join Date: Jul 2012
Location: Oceanside, CA
Posts: 1,279   (View Stats)
iTrader: (10)
Rep Power: 0
ABolewski is the leader of the worldABolewski is the leader of the worldABolewski is the leader of the worldABolewski is the leader of the worldABolewski is the leader of the worldABolewski is the leader of the worldABolewski is the leader of the worldABolewski is the leader of the worldABolewski is the leader of the worldABolewski is the leader of the worldABolewski is the leader of the world
Thanks: 3,654
Thanked 1,377 Times in 624 Posts
Groans: 52
Groaned at 21 Times in 14 Posts
Not Ranked  0 score
Default

@Emew; I'm pretty sure that's just a standard Bosch connector to the sensor and four wires naked ready for soldering. Honestly that's the route I'm going since I am no longer stock-out-able anyway. Lol
__________________
2010 Alternative Lifestyle Blue Mazdaspeed3
(sold)

2008 Chevy Colorado. The only truck that comes with a lifetime guarantee...
ABolewski is offline   Reply With Quote
 Old 12-21-2013, 04:29 PM   #36

TiGraySpeed6's Avatar

Join Date: Jun 2009
Location: Tally, FL
Posts: 3,981   (View Stats)
iTrader: (1)
Rep Power: 3058
TiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the worldTiGraySpeed6 is the leader of the world
Thanks: 4,683
Thanked 5,754 Times in 2,278 Posts
Groans: 2
Groaned at 3 Times in 3 Posts
(Thread Starter)
Not Ranked  0 score
Default

At that price I'd presume it's not the completed pigtail assembly. Bitwise sells just the connector assembly for $25
__________________
Was a Mazdaspeed6 GT #3476 TiGray slicktop
Now in a BMW 135i - double the turbos, double the fun!
E82.N54 2009 / BSM / A/T / Drop-in / PR CP / Berk Street / MHD / xHP
340hp / 371tq
TiGraySpeed6 is offline   Reply With Quote
 Old 12-28-2013, 03:07 PM   #37

btstarcher's Avatar

Join Date: May 2009
Location: Russellville, AR
Posts: 4,852   (View Stats)
iTrader: (3)
Rep Power: 1975
btstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the world
Thanks: 6,199
Thanked 3,522 Times in 1,763 Posts
Groans: 112
Groaned at 38 Times in 22 Posts
Not Ranked  0 score
Default

Just curious, but after reading the help file in ATR it shows that the offset used for the Bosch 845 sensor should be -5.41. Obviously it's incorrect, since everyone who's following the steps here are getting good results with positive numbers, so why is it so far off?
__________________
JBR 3.5" whale penis intake, HTP polished battery tray, PnP stock intake manifold w/VCTS delete (by Kmac), Corksport TMIC, Forge V2 BPV, JBR TIG's, Kozmic EGR delete, Cobb AP, PTP HPFP internals, stock TBE w/gutted cats, JBR RMM, SU PMM and TMM, Koni Yellow Sport struts, Swift springs, Tri Point Engineering RSB, Whiteline Anti Lift Kit, PTP Injector Seals, GenPu transmission, Fidanza flywheel, 3 BAR MAP sensor, Posifab 10.5:1 CR 88mm sexy pistons, Molnar rods, sleeved block, PTP BSD

SnailTune in progress
btstarcher is offline   Reply With Quote
 Old 12-28-2013, 03:10 PM   #38

2.0t03speed's Avatar

Join Date: Apr 2011
Location: Chesapeake,VA
Posts: 1,302   (View Stats)
iTrader: (3)
Rep Power: 901
2.0t03speed is the leader of the world2.0t03speed is the leader of the world2.0t03speed is the leader of the world2.0t03speed is the leader of the world2.0t03speed is the leader of the world2.0t03speed is the leader of the world2.0t03speed is the leader of the world2.0t03speed is the leader of the world2.0t03speed is the leader of the world2.0t03speed is the leader of the world2.0t03speed is the leader of the world
Thanks: 672
Thanked 1,563 Times in 662 Posts
Groans: 22
Groaned at 13 Times in 11 Posts
Not Ranked  0 score
Default

i think it varies from car to car. i installed my 3 bar today and had to use a offset of 6.8 to get -.01 koeo
__________________
2.0t03speed is offline   Reply With Quote
 Old 12-28-2013, 03:12 PM   #39

btstarcher's Avatar

Join Date: May 2009
Location: Russellville, AR
Posts: 4,852   (View Stats)
iTrader: (3)
Rep Power: 1975
btstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the worldbtstarcher is the leader of the world
Thanks: 6,199
Thanked 3,522 Times in 1,763 Posts
Groans: 112
Groaned at 38 Times in 22 Posts
Not Ranked  0 score
Default

I know it varies, but the range given by Eric is all positive numbers.
slw97 likes this.
__________________
JBR 3.5" whale penis intake, HTP polished battery tray, PnP stock intake manifold w/VCTS delete (by Kmac), Corksport TMIC, Forge V2 BPV, JBR TIG's, Kozmic EGR delete, Cobb AP, PTP HPFP internals, stock TBE w/gutted cats, JBR RMM, SU PMM and TMM, Koni Yellow Sport struts, Swift springs, Tri Point Engineering RSB, Whiteline Anti Lift Kit, PTP Injector Seals, GenPu transmission, Fidanza flywheel, 3 BAR MAP sensor, Posifab 10.5:1 CR 88mm sexy pistons, Molnar rods, sleeved block, PTP BSD

SnailTune in progress
btstarcher is offline   Reply With Quote
 Old 02-14-2014, 02:23 PM   #40

Emew's Avatar

Join Date: Apr 2012
Location: Manchester, NH
Posts: 217   (View Stats)
iTrader: (0)
Rep Power: 0
Emew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond reputeEmew has a reputation beyond repute
Thanks: 89
Thanked 74 Times in 50 Posts
Groans: 0
Groaned at 3 Times in 2 Posts
Not Ranked  0 score
Default

@TiGraySpeed6 ; Same A-B values, Offset of 7 in every table achieved -.01

Wouldn't have been easy if not for all the lessons you've given me in ATR, thanks again! Hopefully that higher offset is acceptable!

Also not sure if anyone mentioned it but every .5 in either direction of offset is equivalent to .075, I had .14 at 6 offset, by going to 7 I achieved -.01
__________________
Flow Student
'07 Speed6 TiGrey: SURE ID300/Shift Plate+Weight/Breather Hose, Forge BPV v2, CX-7 Antenna, ProSport Boost Gauge, Block8Head's MS6 Pod, Cobb AP v3, ITV22 1SC Plugs, TWM Short Shift, Stage 2 Clutch, JBR Shifter Bushings/Shift Knob/RMM/EGR Delete, Euro LED Tails, AutoTech FP Internals, M2 DP, ETS TMIC, Techna-Fit SS Brake Lines/Clutch Line, Hawk HPS Pads, ATE 200, MD OCC VTA v2, 3-Bar MAP, AWR TMM, CP-E RDM, Whiteline RSB, RB Rear Endlinks, Moog Front Endlinks, Bilstein HD6 Shocks, Corksport Springs.

Last edited by Emew; 02-14-2014 at 02:31 PM. Reason: MSF Database - Automerged Doublepost
Emew is offline   Reply With Quote
The Following 3 Users Say Thank You to Emew For This Useful Post:
btstarcher (02-14-2014), tastyratz (07-16-2018), TiGraySpeed6 (02-14-2014)
Reply


LinkBacks (?)
LinkBack to this Thread: http://www.mazdaspeedforum.org/forum/forum/f111/how-painless-3-bar-map-sensor-upgrade-128850/
Posted By For Type Date
VersaTune - View topic - bosch 3 bar MAP sensor This thread Refback 06-05-2015 02:50 PM
COBB AccessPort V3 - Seite 16 This thread Refback 05-12-2015 04:07 AM
VersaTune ? View topic - bosch 3 bar MAP sensor This thread Refback 08-24-2014 04:05 AM
AZ520 Budget turbo madness!! Build - Page 18 - Mazda3 Forums : The #1 Mazda 3 Forum This thread Refback 01-07-2014 01:35 PM
3 Bar MAF & MAP Sensors - Page 3 This thread Refback 06-23-2013 01:53 AM

Currently Active Users Viewing This Thread: 1 (0 members and 1 guests)


Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
Stock Fitment 3 Bar Map Sensor Upgrade JumpingJackson MazdaSpeed 3/6 - ECU Computer Tuning 529 02-23-2017 05:15 PM
Fuel Rail High Pressure Sensor Upgrade JumpingJackson MazdaSpeed 3/6 - Fuel, Nitrous & Water Injection 234 10-25-2014 01:54 AM
3.5 Bar Map Sensor Upgrade help Nitr0EngiE MazdaSpeed 3/6 - ECU Computer Tuning 9 12-05-2012 11:11 AM
Fuel Rail High Pressure Sensor Upgrade JumpingJackson MSF KB - Mazdaspeed 3/6 - Fuel 234 09-19-2012 01:53 PM


All times are GMT -7. The time now is 09:08 AM.
Powered by vBulletin® Version 3.8.6
Copyright ©2000 - 2020, Jelsoft Enterprises Ltd.
SEO by vBSEO ©2011, Crawlability, Inc.
vB.Sponsors
Template-Modifications by TMS
©Copyright 2008 ; 2019 Cymru Internet Services LLC | FYHN™ Autosports HQ
Ad Management plugin by RedTyger
Page generated in 0.59595 seconds with 41 queries
