Product Release! - CorkSport Mazdaspeed 3 Front End Links

[Gwynne]

CorkSport is pleased to announce the addition of the Mazdaspeed 3 Adjustable Front End Links to our growing list of suspension upgrades developed to enhance your Mazda’s performance.



The sway bar link attaches to the suspension to promote stabilizing of a vehicle in a turn. By replacing your OEM end links with CorkSport adjustable front end links, you will be able to turn your stabilizer bar into a tunable component in your Mazdaspeed 3 and see immediate improvements in suspension compliance and a dramatic increase in turn-in speed and stability on the highway.

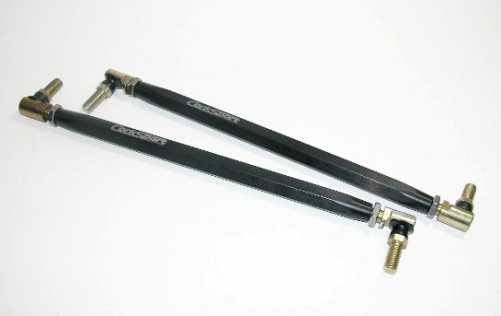

The CorkSport Adjustable Mazdaspeed 3 Front End Links are made from 260mm anodized aluminum that has been force analysis tested to hold up to 2000lbs of tensile force. The end links use 5/8” hex stock, M10x1.5 ball joints and jam nuts to eliminate binding and allow for smooth load transition.



Made to fit OEM and aftermarket front sway bars, the CorkSport Mazdaspeed 3 Front Adjustable End Links allows customers to tune any sway bar and remove the preload commonly associated with the suspension.

“Adjustable end links will allow you to properly balance and tune your suspension to give you the best setup possible” Said CorkSport Engineer, Andrew Gilbert, “Our end links will reduce link flex and fatigue, increase sway bar effectiveness and allow for corner balancing suspension.”

The CorkSport adjustable front end links come in a black anodized finish and include an etched CorkSport logo for a custom and long lasting finish.

The CorkSport Mazdaspeed 3 Front End Links can be purchased for the competitive price of $109.00 making this an easy to install and affordable upgrade for your vehicle.

For more information: Mazdaspeed 3 Front Adjustable Swaybar End Links CorkSport

[silvapain]

It looks from the picture that the end link length can only be extended, not retracted compared to OE. If so, these won't be useful for those like me running KW coilovers, as we need shorter end links.


Tapadatass

[Lex]

Please provide the range compared to stock how much your endlinks can be shortened and how much they can be lengthened.

[Tomas]

I'd like to poke you with my end link.

[Seaton]

Im after some of these, Need the specs as stated above first though,
thanks.

[Gwynne]

The end links have about 12mm of adjustability. They cannot be shortened in comparison with the OEM end links, only lengthened.

[super_pablo_]

sadface. KW coilover owner here.

[Lex]

Originally Posted by super_pablo_ sadface. KW coilover owner here.

x2. I was hoping to drop the FSD shocks further in the knuckle and needed some shorter ones.

I guess you can always grind off the ends. If they can be lengthened by 12cm, then you have enough threads in there to grind the endlink down but it's not elegant.

[silvapain]

Gwynne - tell the engineer to go back and shorten them to allow us +/- 6 cm of adjustment compared to OEM.


Tapadatass

[Gwynne]

Originally Posted by silvapain Gwynne - tell the engineer to go back and shorten them to allow us +/- 6 cm of adjustment compared to OEM. Tapadatass

We have revised the end links to allow for +/- .5cm of adjustment compared to stock. Mazdaspeed 3 Front Adjustable Swaybar End Links CorkSport

[Atomic41]

Originally Posted by Gwynne[MENTION=130 CorkSport;1224039]We have revised the end links to allow for +/- .5cm of adjustment compared to stock. Mazdaspeed 3 Front Adjustable Swaybar End Links CorkSport

.5cm or 5cm ?

[Gwynne]

I have passed the suggestion along to Andrew for revision consideration. Thank you for your feedback!

[aanguia1]

Subbed for shorter endlinks

Sent from my LG-P999 using Tapatalk

[Seaton]

Yeah, good to see this product but it seems kinda pointless when they can only be adjusted longer. Looks like I'll have to go the Whiteline ones. Sorry guys...
Most people with a lowered car are surely after some shorter ones.

[silvapain]

Originally Posted by Gwynne[MENTION=130 CorkSport;1224039]We have revised the end links to allow for +/- .5cm of adjustment compared to stock. Mazdaspeed 3 Front Adjustable Swaybar End Links CorkSport

Now that's what I'm talking about!


Tapadatass

[Uberfly]

the link she supplied states the following:

Adjustable: +/- 6mm in adjustable length compared to stock to easily tune the sway bar as part of the suspension system.

[Dooby]

These endlinks work for MS6 as well?

[CorkSport]

Originally Posted by Dooby These endlinks work for MS6 as well?

They will not. The MS6 uses a different length end link.

-Derrick

[Nitr0EngiE]

.5cm ? ...
