So.... do we still care about big intakes??

[Lex]

Originally Posted by Yatta Thanks for addressing the battery box, the ECU and battery are covered for a good reason and most seem to disregard that... I would still like to see a hard partition between them but beggars and choosers, intake looks nice; though strangely I was hoping for something a bit different audio clips of this turbine in use?

You can actually use some split loom and polyken high temp tape to cover the exposed wiring if you no longer have the ECU cover.

[himurax13]

Originally Posted by Lex You can actually use some split loom and polyken high temp tape to cover the exposed wiring if you no longer have the ECU cover.

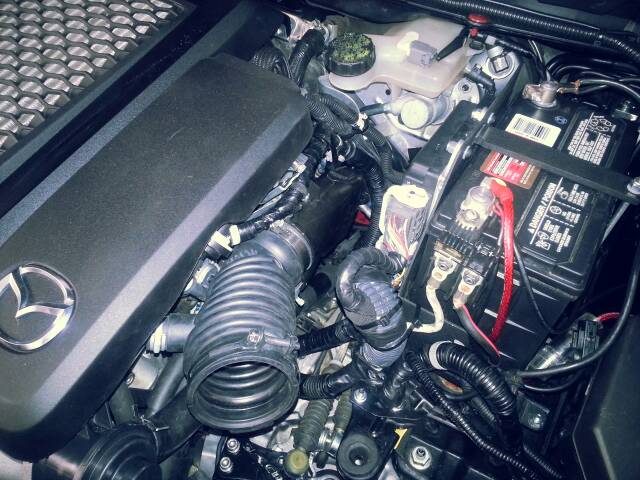

Like this?


Sent via stockish Black Mica Pu

[MS3MYK]

Im so in for this! I love my CS TIP. I wanna go to a big intake though.

Are you guys going to have an option for us VTA guys? JW

[Tokay444]

Originally Posted by Joel@CorkSport Yes, but I think in the case of silicone it's not quite the case. The surface is not as smooth, the bends are not as smooth, the volume and flow changes under boost (in some cases). If you compare the designs, I think the flow differences are much more related to the shape and path of the air than the volume. If you can keep things cylindrical you can almost always outflow things that are not.

Air clings to smooth surfaces. Think "golf ball".

[Ziggo]

The flow in the intake is turbulent, not laminar.

Zigatapatalka

[Tenchix]

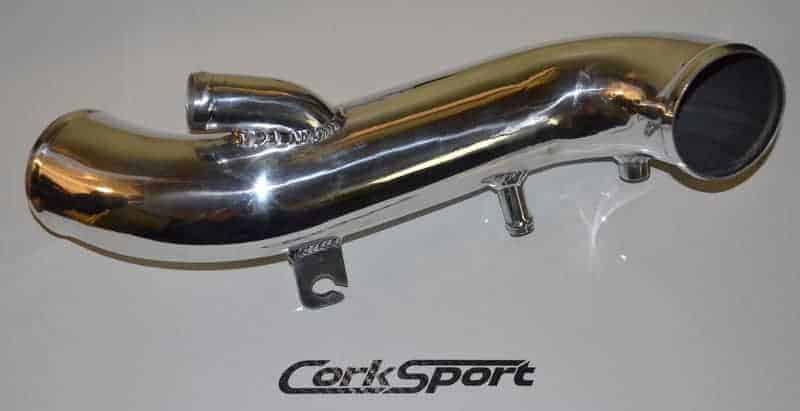

Originally Posted by Brydon@CorkSport Here are some pictures installed. Not the best shots but it gives you an idea.

How big is that box? Is it big enough for a group 25 batter? And I'm pretty sure if it fits a ms3. It'll fit the ms6. Correct? Oh it look great!

[Ziggo]

Please check the calculations in the following spreadsheet. Not sure where your Reynolds number equation came from but it looks wrong to me because it doesn't include a viscosity term, but it may be a different form I am not aware of. Reynolds numbers over 2300 are transitional IIRC with numbers over 4000 being turbulent. MAF sensors are designed to operate in fully developed, turbulent flow.

https://docs.google.com/spreadsheet/...&usp=drive_web

Zigatapatalka

[SLOWHATCH]

Coksport's Dolphin penis?

[3dpilot]

Joel@corksport; CARB legal for the Cali inmates?!?!?!

[SpeedNess]

Ziggo is right,

air density=1.2 (kg/m^3) @ 20 celcius

Q=Flow=VA

Q=0.300 (kg/s)*(1.2 (kg/m^3)=0.25 (m^3/s)

V=velocity= Q/A=(( 0.25 m^3/s)*4)/(pi*0.076m)=55.11 (m/s)

Re=(density*V*Diameter)/dynamic viscosity

dynamic viscosity @ 300 k approx 27 celcius = 1.983 E -5 (kg/m-s)

Re= ((1.2 kg/m^3) * 55.11 (m/s) * (0.076 m))/(1.983E-5 Kg/m-s) = 253,451.6

So the flow is very much turbulent at 300 g/s

Originally Posted by Lex I did a quick Reynold's number calculation for air flowing in a pipe/intake that is 3" (76mm) and circular. Re = (Q*D)/(v*A) where Q is the volumetric flow D = diameter v = air velocity A = cross sectional area At 20* C and sea level air density is about 1200 g/m^3 That means that if we flow 300 g/s we are flowing around 0.25 m^3/s Air velocity in a 76mm pipe flowing 0.25 m^3/s is around 55 m/s That leaves us after some cancellations of radius with 0.25*2/ (55*pi*0.076) which is a Re of ~0.04 which much less than 1 at that flow rate. Generally the Re has to be quite a bit larger to have turbulent flow. Of course this is idealized for just a straight pipe and the bends in the intake do affect the airflow and create turbulence, but the MAF sensor requires a level of laminar flow to achieve a correct reading so at least part of the intake has laminar flow. Further as the velocity of the air increases the flow becomes more laminar and this is why MAF sensors in larger intakes are able to read large airflow rates fine while they struggle with low airflow rates. Wondering how you determined flow to be turbulent and to what extent.

Lex your formula is Ok, but the mistake is that "v" in this formula is not velocity it should be Kinematic Viscosity of the fluid

[Lex]

Originally Posted by SpeedNess Ziggo is right, air density=1.2 (kg/m^3) @ 20 celcius Q=Flow=VA Q=0.300 (kg/s)*(1.2 (kg/m^3)=0.25 (m^3/s) V=velocity= Q/A=(( 0.25 m^3/s)*4)/(pi*0.076m)=55.11 (m/s) Re=(density*V*Diameter)/dynamic viscosity dynamic viscosity @ 300 k approx 27 celcius = 1.983 E -5 (kg/m-s) Re= ((1.2 kg/m^3) * 55.11 (m/s) * (0.076 m))/(1.983E-5 Kg/m-s) = 253,451.6 So the flow is very much turbulent at 300 g/s Lex your formula is Ok, but the mistake is that "v" in this formula is not velocity it should be Kinematic Viscosity of the fluid

Doh! That's the mistake! Thanks for pointing this out guys! Time to recalculate the material effects on the flow of the intake.

[CorkSport]

Originally Posted by 3dpilot Joel@corksport; CARB legal for the Cali inmates?!?!?!

Probably not.... CARB is very VERY expensive and we would have to pass that cost on to each intake and it would make them too expensive, especially considering this won't be a high volume part. Sorry...

[Tokay444]

Originally Posted by SLOWHATCH Dolphin penis?

narwal penis.

Narwhals - YouTube

Narwhals - YouTube

[Gibbo]

Originally Posted by Tokay444 Air clings to smooth surfaces. Think "golf ball".

Correct. This is an awesome thread learning this exact stuff at UNI right now. Changing the boundary flow to turbulent from laminar soon as possible will reduce the drag, allowing greater flow, yes?
Also, can you see a possibility of designing an air box for this if it won't be possible to modify the existing corksport air box for the stage 2 intake..?

Sent from my LG-P880 using Tapatalk 2

[J.Dy]

Originally Posted by Joel@CorkSport Probably not.... CARB is very VERY expensive and we would have to pass that cost on to each intake and it would make them too expensive, especially considering this won't be a high volume part. Sorry...

Would this work with the stock airbox for smog purposes?

[redboat]

will this work for MS6 guys keeping the battery in OEM location?

[scubasteve711]

Interested for the MS6...

[CorkSport]

Originally Posted by redboat will this work for MS6 guys keeping the battery in OEM location?

Checking this out tomorrow. Might just clear. Or we have to get a little creative for the MS6.

[rigor]

4'' would be tuff with stock batt

[CorkSport]

Originally Posted by rigor 4'' would be tuff with stock batt

I think we could do 4" fine with the ECU relocated and the battery pushed back the way Brydon did it but like Brydon said, 4" is neat but the stock head wouldn't be able to handle anything near 4" flow.

[CorkSport]

Originally Posted by rigor 4'' would be tuff with stock batt

100mm (4") Pipe with plenty of space using the stock size battery. Sorry about the bad picture.

[rigor]

moving ecu is cheating

looks good!

i may have to do the same the little battery sucks on cold mornings

[Pu Manchu]

Originally Posted by rigor moving ecu is smart

fixed.

[Juice]

Originally Posted by Brydon@CorkSport Here are some pictures installed. Not the best shots but it gives you an idea.

Just curious, are you going with a new car battery holder? Are you setting up for a 51r battery? I see you moved the ecu to the front in the battery compartment. Is this to accommodate bigger tip?

Training at a Tsa secret location. Sequestration is here!

[evil MS3]

They make reference to a new battery box they are making for the stock battery.

A little tapa tapa taparoo...

[TexanMS3]

Can't wait to see the bigger intake!

[Tokay444]

If you have problems with your silicone intake/tip deforming, your problem is pressure ratio. Your intake is just plain too small. There shouldn't be enough vacuum there to distort its shape.

[AustinK]

Bringing the post filter large amount of air N/A logic into the turbo setups. I am very happy with this setup is looking.

[Yatta]

Originally Posted by rigor 4'' would be tuff with stock batt

rats nest... I like the shop light though... I'm waiting to see another way.

[rigor]

Originally Posted by Yatta rats nest... I like the shop light though... I'm waiting to see another way.

factory rats nest !

i try not to drive it around with the drop light in it, also this is in the mock up stage many moons ago, no more stand back crap anymore..

[06Speed6]

The airflow gain in alum vs silicone isnt so much from the material itself as it is from the shape. If the aluminum is mandrel bent and the inside isnt clogged up with weld sugar/beads then for the same ID alum should out flow silicone because silicone will collapse slightly and it bends/ovals upon installation. Round always outflows other shapes.

Heat transfer in a FI application is almost stupid, air is in the intake for a few thousanths of a second during boost and off boost it doesnt matter. If intake heat killed HP, no one would ever buy a SRI.

A TIP isnt rocket science, make it round, reduce the bend radius(es), sell for a lower price. Its real simple.

The best TIP is a massive air filter clamped to the turbo, anything else is splitting hairs.

[ms3blackmica]

Agreed.

There is not enough time for any drastic heat transfer to take place when moving air at high velocities such as the compressor wheel produces.

That theory alone tends to drive tons of people away from metal intakes all the time.

[Tokay444]

Spoon whale penis intake for the Honda fags isn't round. And that fucker flows.
Fyhn

[dooderek]

i am king whale peen

[Mfinlay04]

Originally Posted by Joel@CorkSport Just curious if this was still a thing... haha

Joel what's the word on this? Looking to buy a TIP the first week of June and looking for other options.

Sent from my Galaxy Nexus using Tapatalk 2

[CorkSport]

Originally Posted by Mfinlay04 Joel what's the word on this? Looking to buy a TIP the first week of June and looking for other options. Sent from my Galaxy Nexus using Tapatalk 2

I don't think we'll hit June. If you can wait, I think it will be worth it to you.

Cheers,
Joel

[himurax13]

No black powdercoating?

Sent via rental car

[CorkSport]

I'm sure that will be an option. Black everything is very popular for our intakes.

[Caligula]

"So.... do we still care about big intakes??"


YES.

[Mfinlay04]

Originally Posted by Joel@CorkSport I don't think we'll hit June. If you can wait, I think it will be worth it to you. Cheers, Joel

What kind of price point are you guys trying to hit? I know from past CS products price was always fair but if this is going to be a "limited" production kinda deal will the price reflect that?

Sent from my Nexus 7 using Tapatalk 2
